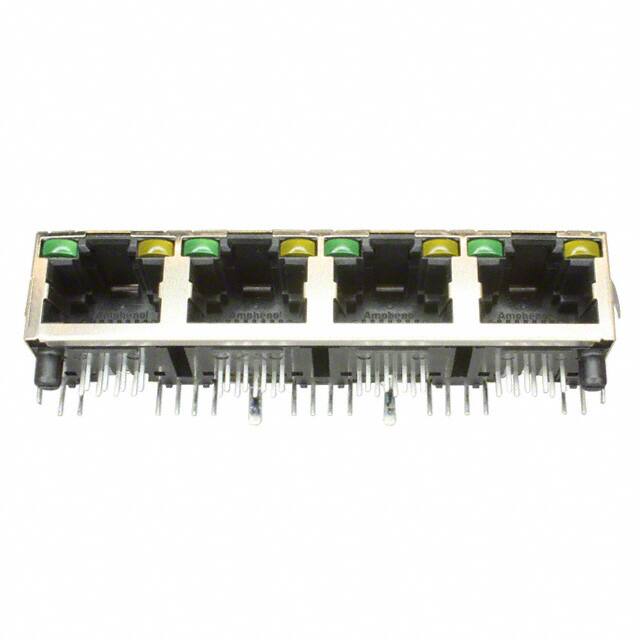

RJHSE-5384-04

Specifications

Reliability

COMMERCIAL

Seri

RJHSE

Çalışma Sıcaklığı

-55°C~85°C

Number Of Positionscontacts

8p8c (RJ45, Ethernet)

Contact Materials

Phosphor Bronze

Sıra Sayısı

1

Body Breadth

0.53 inch

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Empty Shell

NO

Depth

15.76mm

Max Voltage Rating Ac

125V

Reference Standard

UL

Pitch

2.03mm

Max Current Rating

1.5A

Additional Feature

SHILEDED

Shielding

Shielded, EMI Finger

Nominal Gerilim

125V

Flammability Rating

UL94 V-0

Orientation

90° Angle (Right)

Gender

Female

Shell Finish

NICKEL

Mil Conformance

NO

Contact Style

TELCOM, MODULAR

Yayın Yılı

2005

Akım Değeri

1.5A

Led Color

Green - Yellow

Number Of Contacts

8

Connector Type

Jack

Pcb Contact Pattern

STAGGERED

Contact Finish Thickness

50.0μin 1.27μm

Plating Thickness

50μin

Tab Direction

Up

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Housing Material

Thermoplastic

Mixed Contacts

NO

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Uzunluk

63.75mm
