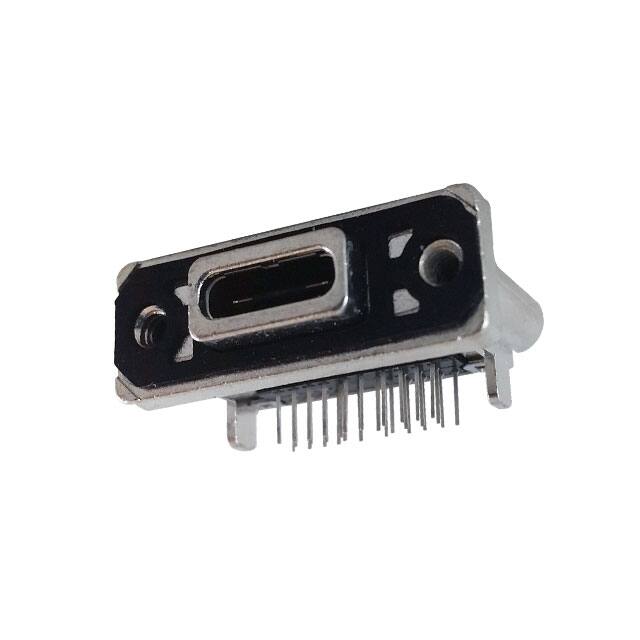

MUSBRM1C130

Specifications

Body Depth

0.589 inch

Contact Pattern

RECTANGULAR

Pcb Contact Pattern

MIXED

Mounting Feature

Flange, Horizontal

Fabrika Tedarik Süresi

7 Weeks

Current Rating Amps

0.25A 1.25A 5A

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

Not Applicable

Shell Finish

TIN

Shellshielding Material

Steel, Stainless

Insulation Color

Black

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Ambalaj

Tray

Ingress Protection

IP67 - Dust Tight, Waterproof

Ratings

Dust Tight, IP67, Waterproof

Option

GENERAL PURPOSE

Contact Finish

Gold

Body Length Or Diameter

0.925 inch

Number Of Contacts

24

Contact Resistance

40mOhm

Shell Material

ZINC ALLOY

ECCN Kodu

EAR99

Kurşunsuz

Lead Free

Montaj

Horizontal, Through Hole

Shielding

Shielded

Reference Standard

UL

Body Breadth

0.346 inch

Terminal

Solder

Connector Type

USB-C (USB TYPE-C)

Seri

MUSBR

Length Termination

0.073 inch

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Parça Durumu

Active

Orientation

Right Angle

REACH Uyumluluk Kodu

unknown

Usb

USB 3.1

Çalışma Sıcaklığı

-40°C~105°C

Filter Feature

NO
