Volume pricing
- 1+ pcs$1.49
- 10+ pcs$1.41
- 100+ pcs$1.33
- 500+ pcs$1.25
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

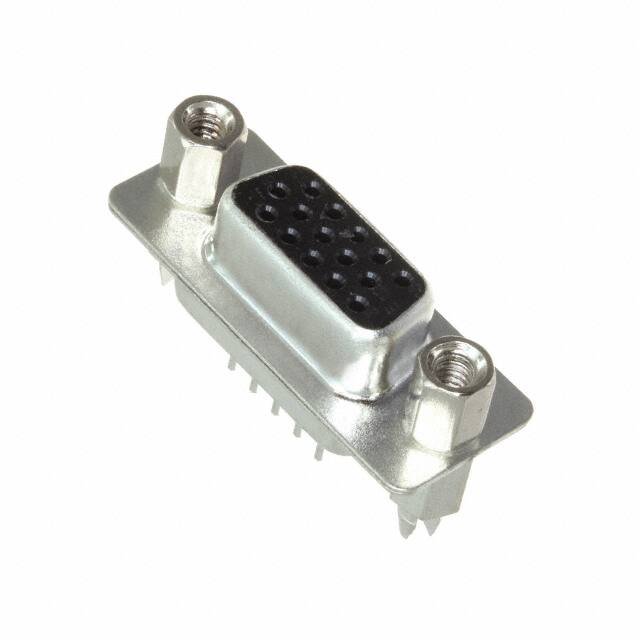

Specifications
- Parça Durumu
- Active
- Orientation
- Straight
- Material Flammability Rating
- UL94 V-0
- Uzunluk
- 30.84mm
- Iec Conformance
- NO
- Mixed Contacts
- NO
- Terminal
- Solder
- Total Number Of Contacts
- 15
- Sıra Sayısı
- 3
- Depth
- 12.55mm
- Max Supply Voltage Ac
- 250V
- Mil Conformance
- YES
- Yayın Yılı
- 2007
- Akım Değeri
- 3A
- Housing Material
- Thermoplastic
- Gender
- Receptacle
- Radyasyon Dayanımı
- No
- Body Material
- Steel
- Contact Type
- Signal
- Ul Flammability Code
- 94V-0
- Plating
- Tin
- Seri
- HD
- Contact Materials
- Phosphor Bronze
- Shell Material Finish
- Steel, Tin Plated
- Flange Feature
- Board Side (4-40); Mating Side, Female Screwlock (4-40)
- Fabrika Tedarik Süresi
- 5 Weeks
- Option
- GENERAL PURPOSE
- Çalışma Sıcaklığı
- -55°C~155°C
- Max Voltage Rating Ac
- 250V
- Shell Size Connector Layout
- 1 DE E High Density
- Shell Finish
- TIN
- Pitch
- 2.29mm
- Connector Style
- D-Sub, High Density
- Özellikler
- Board Lock
- Empty Shell
- NO
- Din Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Montaj Tipi
- Through Hole
- Montaj
- Through Hole
