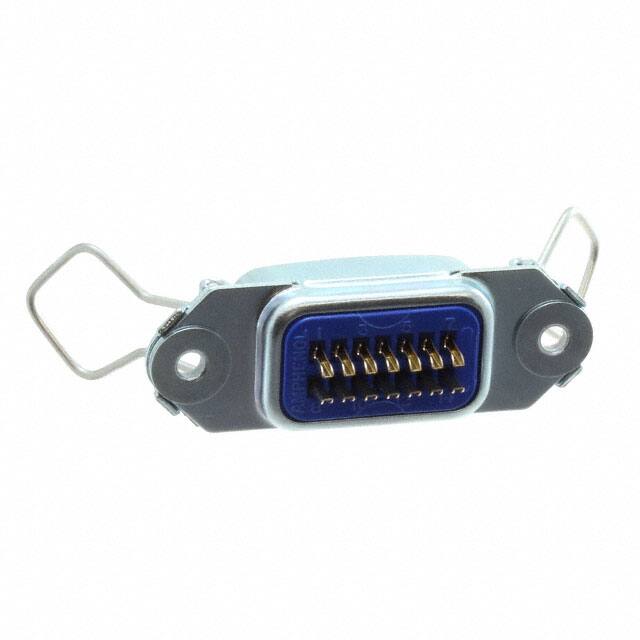

5740140

Specifications

Pozisyon Sayısı

14

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Contact Style

CENTRONIC

Insulation Resistance

5000000000Ohm

REACH Uyumluluk Kodu

unknown

Mixed Contacts

NO

Flange Feature

Housing/Shell (Unthreaded)

Filter Feature

NO

Contact Materials

Copper

Mounting Option1

HOLE .103

Operating Temperature Min

-55°C

Total Number Of Contacts

14

Parça Durumu

Obsolete

Connector Type

Receptacle

Contact Finish

Gold

Rated Current Signal

5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Ul Flammability Code

94V-0

Connector Style

Outer Shroud Contacts

Contact Finish Thickness

20.0μin 0.51μm

Operating Temperature Max

105°C

Montaj Tipi

Free Hanging (In-Line)

Contact Gender

FEMALE

Shell Material

STEEL

Contact Pattern

RECTANGULAR

Insulation Materials

DIALLYL PHTHALATE

Body Length Or Diameter

1.75 inch

Body Breadth

0.61 inch

Terminal

Solder Cup

Seri

57

Mating Contact Pitch

0.085 inch

Özellikler

Bail Lock

Empty Shell

NO

Option

GENERAL PURPOSE

Mounting Option2

LATCH

Shell Finish

ZINC CHROMATE PLATED

Reliability

COMMERCIAL
