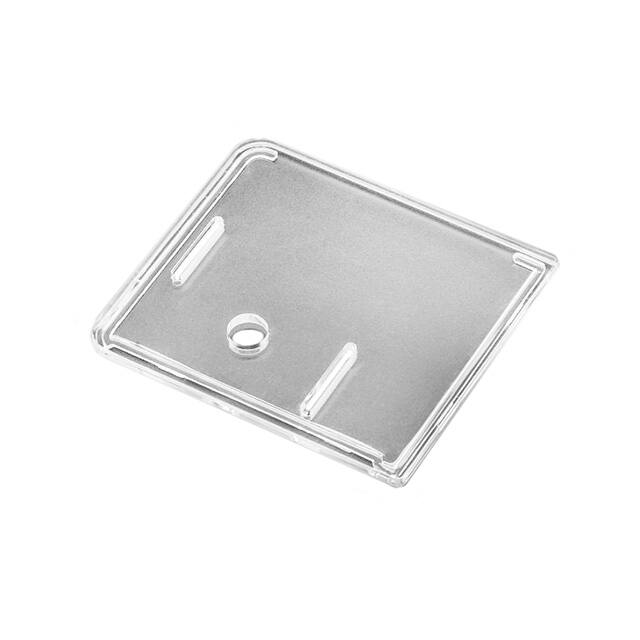

2362

Specifications

Reliability

COMMERCIAL

Material

Polycarbonate (PC)

Montaj Stili

STRAIGHT

Insulation Resistance

5000000000Ohm

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Sıra Sayısı

2

RoHS Durumu

ROHS3 Compliant

Renk

Clear

Contact Resistance

20mOhm

Parça Durumu

Active

Contact Finish Mating

AU ON NI

Body Depth

0.512 inch

Total Number Of Contacts

76

Plating Thickness

FLASH inch

Bodyshell Style

RECEPTACLE

Rated Current Signal

3A

Mating Contact Pitch

0.1 inch

Body Breadth

0.197 inch

Seri

PI

Number Of Pcb Rows

2

Tip

Cover, Lid

JESD-609 Kodu

e4

Body Length Or Diameter

3.8 inch

Terminal Adımı

2.54mm

Length Termination

0.236 inch

Reference Standard

UL, CSA

Operating Temperature Max

105°C

Nem Hassasiyeti (MSL)

Not Applicable

Contact Gender

MALE

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1000VAC V

Pcb Contact Row Spacing

2.54 mm

Boyut / Ölçü

2.900Lx2.600W x 0.200 H 73.66mmx66.04mmx5.08mm

Özellikler

Raspberry Pi A+

Mating Contact Row Spacing

0.1 inch

Operating Temperature Min

-55°C

Additional Feature

ROHS COMPLIANT

Number Of Conductors

ONE

Contact Pattern

RECTANGULAR
