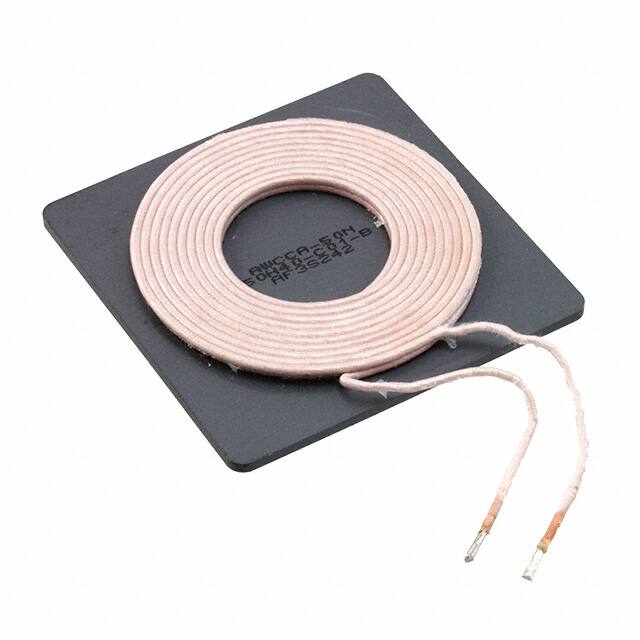

Specifications
- Frequencyselfresonant
- 2.9MHz
- Tip
- 1 Coil, 1 Layer
- Depth
- 4.5mm
- Ambalaj
- Box
- Genişlik
- 50mm
- Military Standard
- Not
- Maks. Çalışma Sıcaklığı
- 85°C
- Q Factor
- 165
- Function
- Receiver, Transmitter
- RoHS Durumu
- RoHS Compliant
- Kılıf / Paket
- Radial
- Current Rating Amps
- 5.7A
- Dc Resistance Dcr
- 72mOhm
- Reach Svhc
- No SVHC
- Current Saturation
- 27A
- Logic Function
- Receiver
- Akım Değeri
- 5.7A
- Q Freq
- 165 @ 100kHz
- Yayın Yılı
- 2011
- Number Of Turns
- 20
- Inductance Tolerance
- 10%
- Çalışma Sıcaklığı
- -25°C~85°C
- Number Of Coils
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Seri
- AWCCA-50N50
- Uzunluk
- 50mm
- Yükseklik
- 3.81mm
- Tolerans
- ±10%
- Test Frequency
- 100kHz
- Shielding
- Shielded
- Kurşunsuz
- Lead Free
- Min. Çalışma Sıcaklığı
- -25°C
- Montaj
- Box
- Fabrika Tedarik Süresi
- 13 Weeks
- Leadbase Style
- Radial
- Boyut / Ölçü
- 1.96Lx1.96W x 0.15 H 50.0mmx50.0mmx4.0mm
- Endüktans
- 24μH
