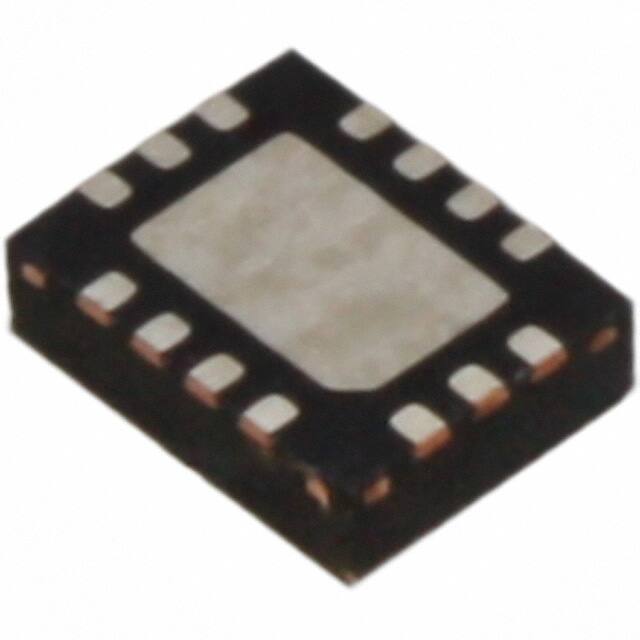

ASEMDLV-LR-T3

Specifications

Boyut / Ölçü

0.126Lx0.098W 3.20mmx2.50mm

Kurşunsuz Kodu

yes

Besleme Gerilimi

2.25V~3.6V

Frekans

460MHz

Çalışma Sıcaklığı

-40°C~85°C

Operating Frequency

400MHz

Power Supplies

2.5/3.3V

RoHS Durumu

RoHS Compliant

Rise Timemax

0.25ns

Seri

ASEMDLV, Pure Silicon™

Fall Timemax

0.25ns

Frequency Output1

100MHz 125MHz 148.5MHz 150MHz 156.25MHz 400MHz

Yükseklik

0.035 0.90mm

Tip

XO (Standard)

Output

LVDS

Terminal

SMD/SMT

Function

Enable/Disable

Mounting Feature

SURFACE MOUNT

Fabrika Tedarik Süresi

15 Weeks

Base Resonator

MEMS

Physical Dimension

3.2mm x 2.5mm x 0.85mm

Current Supply Disable Max

23mA

Frequency Output2

25MHz 50MHz 74.25MHz 75MHz 125MHz 200MHz

Kılıf / Paket

14-VFQFN Exposed Pad

Ambalaj

Tape & Reel (TR)

Operating Supply Voltage

3.6V

Yayın Yılı

2011

Max Supply Current

38mA

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Qualification Status

Not Qualified

Yüzey Montaj

YES

Symmetrymax

52/48%

Terminal Sayısı

14

Frequency Stability

±25ppm

Current Supply Max

38mA Typ
