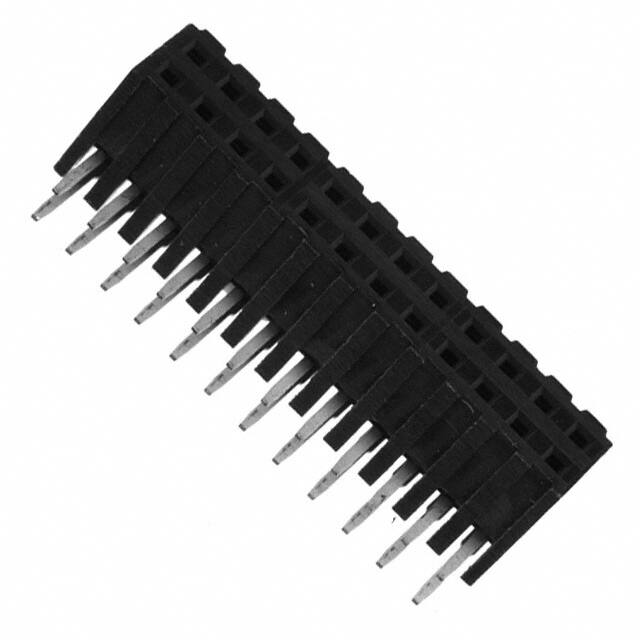

950424-5002-AR

Specifications

Sıra Sayısı

2

Insulation Materials

Thermoplastic

Style

Board to Board

Nominal Gerilim

1000VDC

Ambalaj

Tube

Renk

Black

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Copper Alloy

Gender

Female

Row Spacing Mating

0.079 (2.00mm)

Insulation Color

Black

Fastening Type

Push-Pull

Pozisyon Sayısı

24

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Post

Tin

Seri

950

Montaj

Through Hole

Contact Finish Thickness Post

40.0μin 1.02μm

Contact Type

Female Socket

Pitch Mating

0.079 2.00mm

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Mating

Flash

Montaj Tipi

Through Hole, Right Angle

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Terminal

Solder

Contact Plating

Gold

Contact Shape

Square

Current Rating Amps

1A

Yayın Yılı

2013

Parça Durumu

Active

Contact Finish Mating

Gold

Connector Type

Receptacle

Number Of Positions Loaded

All

Pitch

2.0066mm

Insulation Height

0.191 4.85mm

Nem Hassasiyeti (MSL)

1 (Unlimited)
