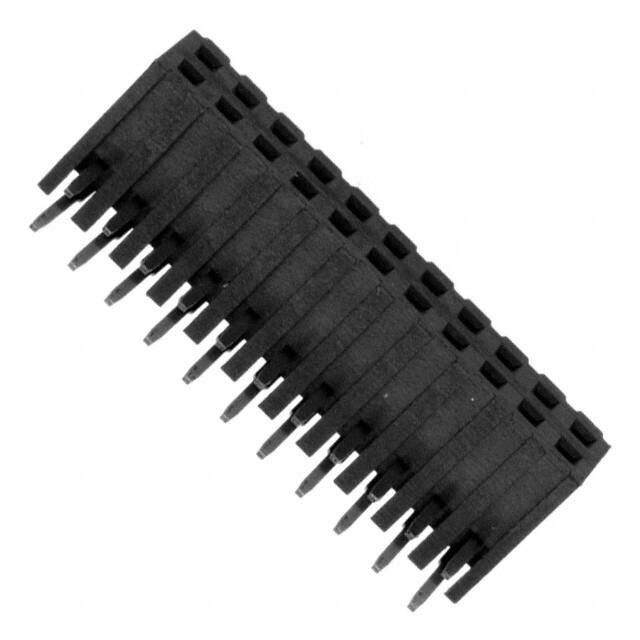

950422-5002-AR

Specifications

Montaj

Through Hole

Contact Finish Thickness Post

40.0μin 1.02μm

Contact Type

Female Socket

Pitch Mating

0.079 2.00mm

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Mating

Flash

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Terminal

Solder

Contact Plating

Gold

Current Rating Amps

1A

Contact Shape

Square

Yayın Yılı

2008

Parça Durumu

Active

Connector Type

Receptacle

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Pitch

2.0066mm

Insulation Height

0.191 4.85mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Insulation Materials

Thermoplastic

Style

Board to Board

Nominal Gerilim

1000VDC

Renk

Black

Ambalaj

Tube

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Copper Alloy

Gender

Female

Row Spacing Mating

0.079 (2.00mm)

Insulation Color

Black

Fastening Type

Push-Pull

Pozisyon Sayısı

22

Fabrika Tedarik Süresi

5 Weeks

Contact Finish Post

Tin

Seri

950
