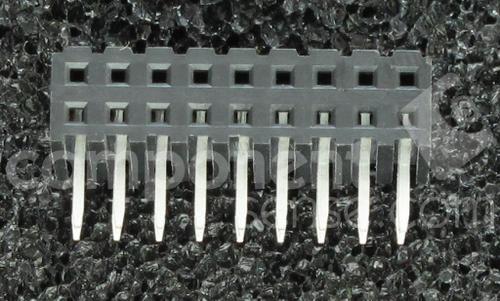

950418-5002-AR

Specifications

Contact Materials

Copper Alloy

Çalışma Sıcaklığı

-40°C~105°C

Renk

Black

Ambalaj

Tube

Nominal Gerilim

1000VDC

Number Of Contacts

18

Style

Board to Board

Insulation Materials

Thermoplastic

Sıra Sayısı

2

Seri

950

Contact Finish Post

Tin

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

18

Fastening Type

Push-Pull

Contact Gender

Female

Insulation Color

Black

Row Spacing Mating

0.079 (2.00mm)

Gender

Receptacle

Terminal

Solder

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Mating

Flash

Akım Değeri

1A

Contact Length Post

0.118 3.00mm

Pitch Mating

0.079 2.00mm

Contact Finish Thickness Post

40.0μin 1.02μm

Contact Type

Female Socket

Montaj

Through Hole

Insulation Height

0.191 4.85mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

2mm

Housing Material

Thermoplastic

Number Of Positions Loaded

All

Connector Type

Receptacle

Contact Finish Mating

Gold

Parça Durumu

Active

Yayın Yılı

2013

Current Rating Amps

1A

Contact Shape

Square
