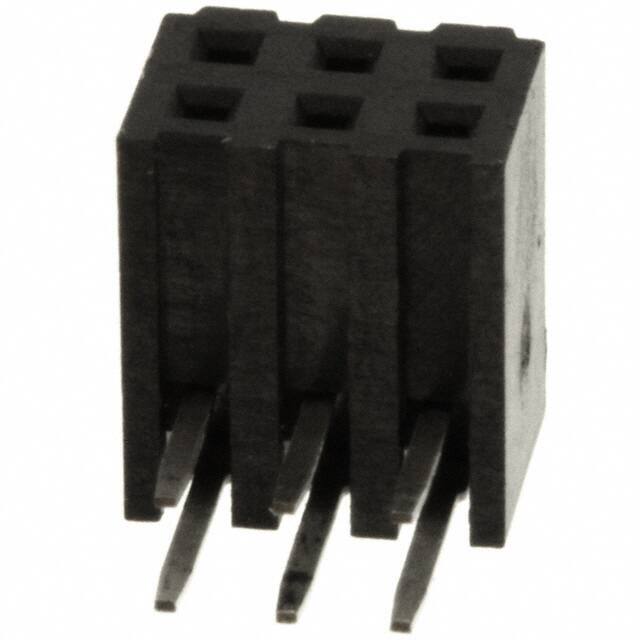

950406-5002-AR

Specifications

Orientation

Right Angle

Housing Material

Thermoplastic

Number Of Positions Loaded

All

Pitch

2mm

Insulation Height

0.191 4.85mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Current Rating Amps

1A

Contact Plating

Gold

Parça Durumu

Active

Min. Çalışma Sıcaklığı

-25°C

Connector Type

Receptacle

Contact Finish Mating

Gold

Yayın Yılı

2008

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole, Right Angle

Depth

7.2mm

Terminal

Solder

Contact Type

Female Socket

Contact Finish Thickness Post

40.0μin 1.02μm

Montaj

Through Hole

Akım Değeri

1A

Housing Color

Black

Contact Finish Thickness Mating

Flash

Pitch Mating

0.079 2.00mm

Contact Length Post

0.118 3.00mm

Pozisyon Sayısı

6

Fabrika Tedarik Süresi

3 Weeks

Fastening Type

Push-Pull

Contact Gender

Female

Contact Finish Post

Tin

Seri

950

Gender

Receptacle

Row Spacing Mating

0.079 (2.00mm)

Insulation Color

Black

Insulation Materials

Thermoplastic

Style

Board to Board

Number Of Contacts

6

Max Current Rating

1A
