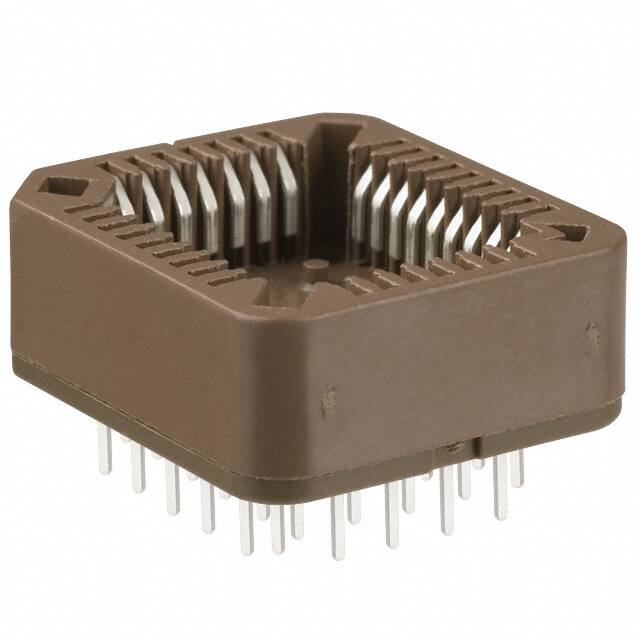

8432-11B1-RK-TP

Specifications

Pozisyon Sayısı

32

Depth

20.6mm

Contact Material Mating

Copper Alloy

Yayın Yılı

2006

Insulation Materials

Polybutylene

Sıra Sayısı

4

Fabrika Tedarik Süresi

8 Weeks

Insulation Resistance

1GOhm

Contact Finish Thickness Post

160.0μin 4.06μm

Termination Post Length

0.132 3.35mm

Ambalaj

Tube

Current Rating Amps

1A

Connector Type

Socket

Contact Material Post

Copper Alloy

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

105°C

Radyasyon Dayanımı

No

Lead Pitch

1.27mm

Pitch Post

0.100 2.54mm

Genişlik

17.9mm

Number Of Contacts

32

Number Of Positions Or Pins Grid

32 (2 x 7, 2 x 9)

Contact Materials

Copper

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Pin Sayısı

32

Kurşunsuz

Lead Free

Seri

8400

Contact Finish Post

Tin

Flammability Rating

UL94 V-0

Min. Çalışma Sıcaklığı

-40°C

Uzunluk

18.05mm

Gender

Female

Contact Finish Mating

Tin

Yükseklik

8mm

Contact Finish Thickness Mating

160.0μin 4.06μm

Tip

PLCC

Terminal

Solder

Pitch Mating

0.050 1.27mm

Row Spacing

10.16 mm
