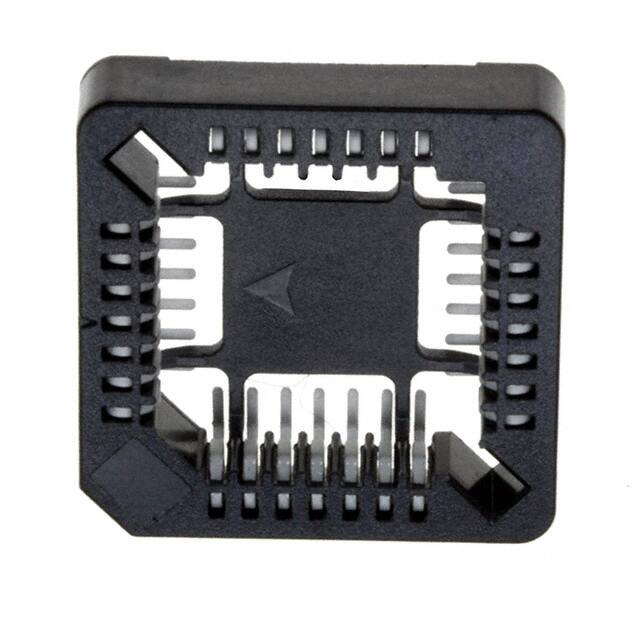

8428-21B1-RK-TP

Specifications

Fabrika Tedarik Süresi

8 Weeks

Radyasyon Dayanımı

No

Number Of Contacts

28

Uzunluk

18.18mm

Termination Post Length

0.132 3.35mm

Contact Plating

Tin

Gender

Female

Yayın Yılı

2006

Pitch Post

0.050 1.27mm

Genişlik

17.78mm

Flammability Rating

UL94 V-0

Min. Çalışma Sıcaklığı

-40°C

Number Of Positions Or Pins Grid

28 (4 x 7)

Contact Finish Post

Tin

Insulation Materials

Polyphenylene

Contact Resistance

30mOhm

Pozisyon Sayısı

28

Seri

8400

Contact Finish Thickness Post

160.0μin 4.06μm

Contact Materials

Copper

Orientation

Straight

Connector Type

Socket

Contact Material Mating

Copper Alloy

Terminal

Solder

Maks. Çalışma Sıcaklığı

105°C

Pitch

1.27mm

Contact Finish Thickness Mating

160.0μin 4.06μm

Depth

18.18mm

Current Rating Amps

1A

Ambalaj

Tube

Tip

PLCC

Reach Svhc

No SVHC

Montaj

Surface Mount

Insulation Resistance

1GOhm

Çalışma Sıcaklığı

-40°C~105°C

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material Post

Copper Alloy

Lead Pitch

1.27mm

RoHS Durumu

RoHS Compliant

Yükseklik

4.6mm
