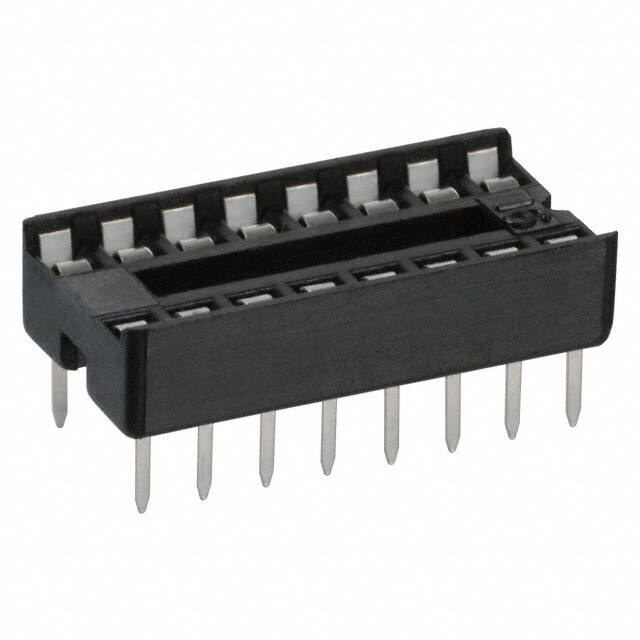

4816-3000-CP

Specifications

Number Of Contacts

16

Depth

10.16mm

Insulation Materials

Polyester

Montaj Tipi

Through Hole

Contact Finish Thickness Mating

35.4μin 0.90μm

Contact Material Mating

Phosphor Bronze

Seri

4800

Insulation Resistance

5GOhm

Pitch Mating

0.100 2.54mm

Tip

DIP, 0.3 (7.62mm) Row Spacing

Pitch

2.54mm

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Tube

Contact Materials

Bronze

Terminal

Solder

Voltage Rated Ac

100V

Kurşunsuz

Lead Free

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

16 (2 x 8)

Gender

Female

Pozisyon Sayısı

16

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Akım Değeri

1A

Min. Çalışma Sıcaklığı

-25°C

Current Rating Amps

1A

Contact Material Post

Phosphor Bronze

Pin Sayısı

16

Fabrika Tedarik Süresi

9 Weeks

Row Spacing

7.62 mm

Connector Type

DIP, Socket

Çalışma Sıcaklığı

-25°C~85°C

Contact Finish Post

Tin

Genişlik

10.16mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Housing Material

Polyester, Glass Filled

Özellikler

Open Frame

Contact Plating

Tin
