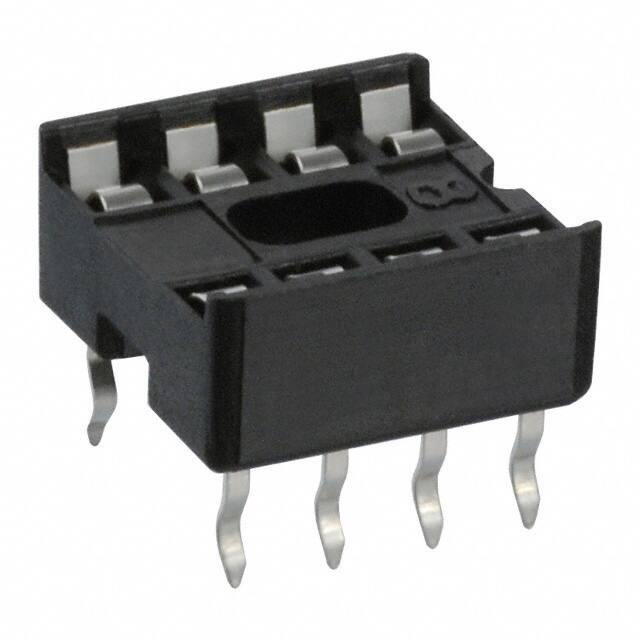

4808-3004-CP

Specifications

Terminal

Solder

Uzunluk

10.03mm

Depth

10.16mm

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Number Of Contacts

8

Montaj

Through Hole

Pitch Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Number Of Positions Or Pins Grid

8 (2 x 4)

Pozisyon Sayısı

8

Voltage Rated Ac

100V

Contact Material Mating

Phosphor Bronze

Insulation Resistance

5GOhm

Flammability Rating

UL94 V-0

Pin Sayısı

8

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min. Çalışma Sıcaklığı

-25°C

Tip

DIP, 0.3 (7.62mm) Row Spacing

Contact Plating

Tin

Çalışma Sıcaklığı

-25°C~85°C

Fabrika Tedarik Süresi

9 Weeks

Row Spacing

7.62 mm

Gender

Female

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Reach Svhc

No SVHC

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Current Rating Amps

1A

Contact Finish Thickness Mating

35.4μin 0.90μm

Genişlik

10.16mm

Housing Material

Polyester, Glass Filled

Ambalaj

Tube

Contact Material Post

Phosphor Bronze

Connector Type

DIP, Socket

Pitch

2.54mm

Özellikler

Open Frame

Yayın Yılı

2006

Insulation Materials

Polyester
