Volume pricing
- 1+ pcs$4.36
- 10+ pcs$4.12
- 100+ pcs$3.88
- 500+ pcs$3.66
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

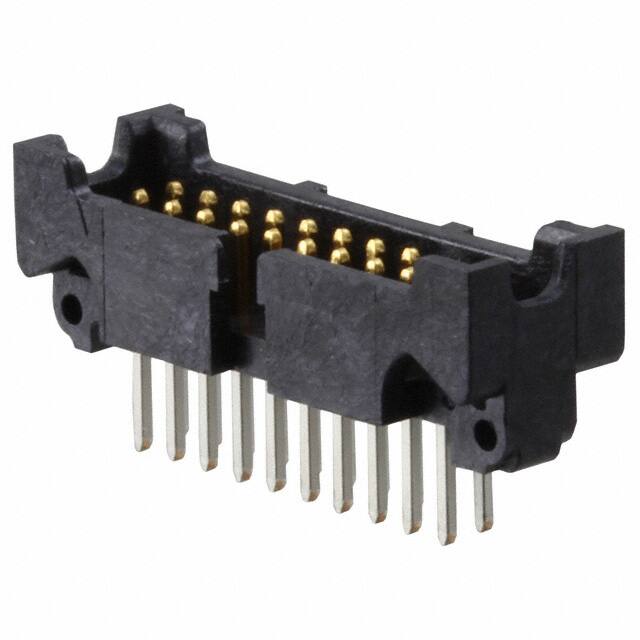

Specifications
- Montaj Tipi
- Through Hole
- Row Spacing Mating
- 0.050 (1.27mm)
- Nominal Gerilim
- 125V
- Contact Materials
- Copper Alloy
- Sıra Sayısı
- 2
- Fabrika Tedarik Süresi
- 10 Weeks
- Terminal
- Solder
- Insulation Height
- 0.222 5.65mm
- Montaj
- Through Hole
- Ambalaj
- Tray
- Connector Type
- Header
- Style
- Board to Cable/Wire
- Contact Type
- Male Pin
- Contact Length Post
- 0.094 2.40mm
- Akım Değeri
- 1A
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Number Of Positions Loaded
- All
- Contact Finish Post
- Tin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Seri
- 452
- Contact Shape
- Square
- Contact Gender
- Male
- Contact Finish Mating
- Gold
- Özellikler
- Keying Slot
- Pitch Mating
- 0.050 1.27mm
- Yayın Yılı
- 2013
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Stack Height Mating
- 5.84mm 6.60mm 7.21mm 8.13mm
- Housing Material
- Liquid Crystal Polymer
- Pozisyon Sayısı
- 20
- Contact Finish Thickness Post
- 200.0μin 5.08μm
- Material Flammability Rating
- UL94 V-0
- Çalışma Sıcaklığı
- -65°C~125°C
- Reach Svhc
- No SVHC
- Parça Durumu
- Active
- Flammability Rating
- UL94 V-0
- Fastening Type
- Push-Pull
- Shrouding
- Shrouded - 4 Wall
- Orientation
- Straight
- RoHS Durumu
- ROHS3 Compliant
