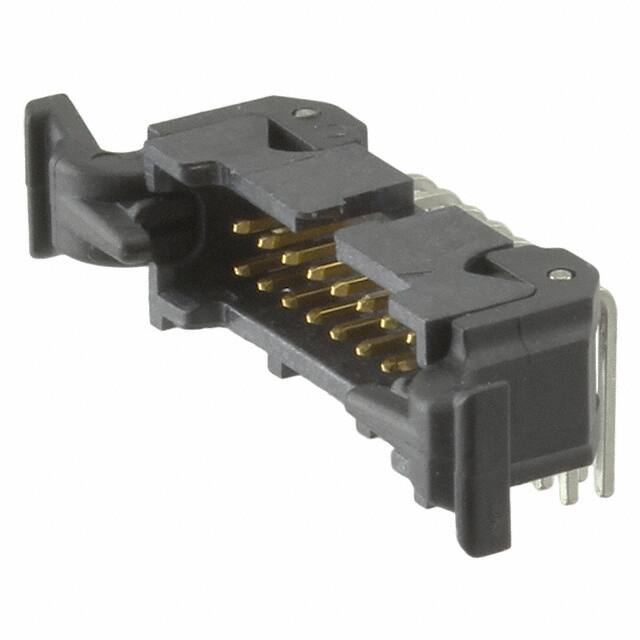

45216-520230

Specifications

Pitch Mating

0.050 1.27mm

Özellikler

Keying Slot

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Current Rating Amps

1A

Yayın Yılı

2013

Pozisyon Sayısı

16

Housing Material

Liquid Crystal Polymer

Contact Finish Thickness Post

200.0μin 5.08μm

Maks. Çalışma Sıcaklığı

105°C

Contact Shape

Square

Contact Gender

Male

Pitch

1.27mm

Contact Finish Mating

Gold

Flammability Rating

UL94 V-0

Fastening Type

Latch Lock/Eject Hooks, Short

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-65°C~125°C

Parça Durumu

Active

Contact Plating

Gold

Nominal Gerilim

125V

Contact Materials

Copper Alloy

Montaj

Through Hole

Insulation Height

0.210 5.33mm

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Number Of Contacts

16

Montaj Tipi

Through Hole, Right Angle

Row Spacing Mating

0.050 (1.27mm)

Style

Board to Cable/Wire

Contact Length Post

0.094 2.40mm

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Akım Değeri

1A
