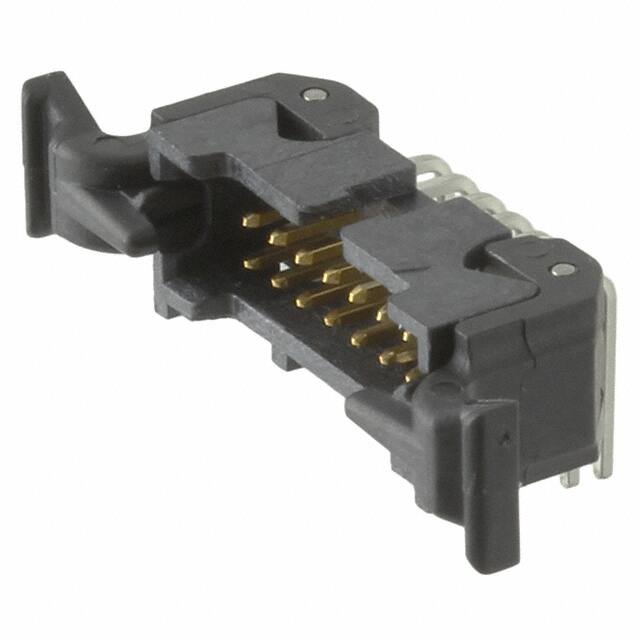

45214-520230

Specifications

Connector Type

Header

Ambalaj

Tray

Insulation Materials

Liquid Crystal Polymer (LCP)

Akım Değeri

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Number Of Positions Loaded

All

Seri

452

Style

Board to Cable/Wire

Contact Length Post

0.094 2.40mm

Contact Type

Male Pin

Row Spacing Mating

0.050 (1.27mm)

Number Of Contacts

14

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Insulation Height

0.210 5.33mm

Terminal

Solder

Contact Materials

Copper Alloy

Nominal Gerilim

125V

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-65°C~125°C

Parça Durumu

Active

Contact Plating

Gold

Fastening Type

Latch Lock/Eject Hooks, Short

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Maks. Çalışma Sıcaklığı

105°C

Pitch

1.27mm

Contact Gender

Male

Contact Shape

Square

Pozisyon Sayısı

14

Housing Material

Liquid Crystal Polymer

Contact Finish Thickness Post

200.0μin 5.08μm

Özellikler

Keying Slot

Pitch Mating

0.050 1.27mm

Current Rating Amps

1A
