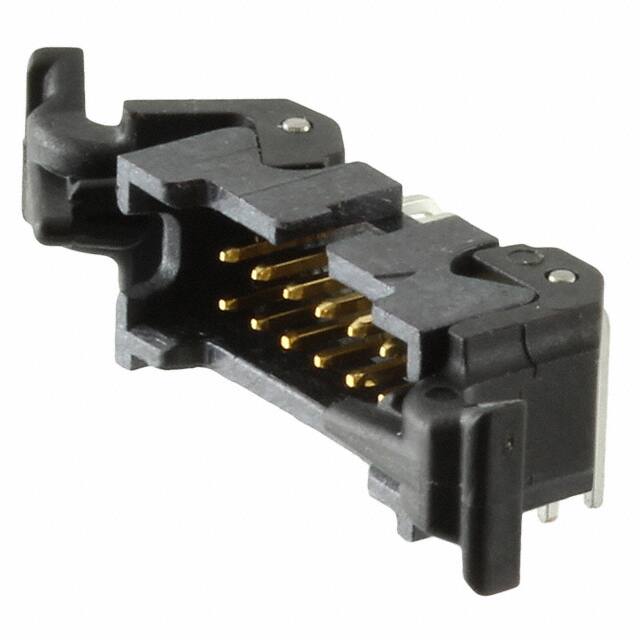

45212-520230

Specifications

Contact Plating

Gold

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-65°C~125°C

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Lock/Eject Hooks, Short

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Pitch

1.27mm

Contact Shape

Square

Contact Gender

Male

Maks. Çalışma Sıcaklığı

105°C

Contact Finish Thickness Post

200.0μin 5.08μm

Pozisyon Sayısı

12

Housing Material

Liquid Crystal Polymer

Current Rating Amps

1A

Yayın Yılı

2013

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Özellikler

Keying Slot

Pitch Mating

0.050 1.27mm

Connector Type

Header

Ambalaj

Tray

Seri

452

Insulation Materials

Liquid Crystal Polymer (LCP)

Akım Değeri

1A

Number Of Positions Loaded

All

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Contact Length Post

0.094 2.40mm

Style

Board to Cable/Wire

Row Spacing Mating

0.050 (1.27mm)

Montaj Tipi

Through Hole, Right Angle

Number Of Contacts

12

Sıra Sayısı

2

Montaj

Through Hole

Insulation Height

0.210 5.33mm

Terminal

Solder
