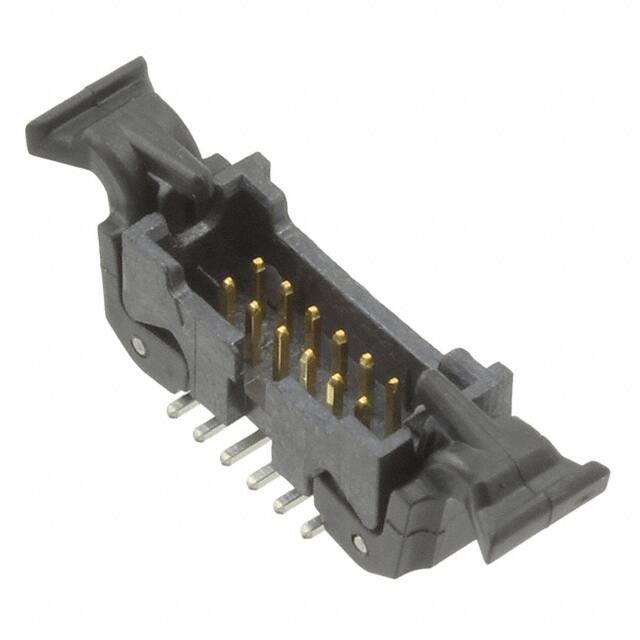

45212-220230

Specifications

Parça Durumu

Active

Contact Plating

Gold

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-65°C~125°C

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Fastening Type

Latch Lock/Eject Hooks, Short

Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Pitch

1.27mm

Contact Shape

Square

Contact Gender

Male

Maks. Çalışma Sıcaklığı

105°C

Contact Finish Thickness Post

200.0μin 5.08μm

Pozisyon Sayısı

12

Housing Material

Liquid Crystal Polymer

Current Rating Amps

1A

Yayın Yılı

2013

Min. Çalışma Sıcaklığı

-55°C

Stack Height Mating

5.84mm 6.60mm 7.21mm 8.13mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Özellikler

Keying Slot, Pick and Place

Pitch Mating

0.050 1.27mm

Connector Type

Header

Ambalaj

Tape & Reel (TR)

Seri

452

Insulation Materials

Liquid Crystal Polymer (LCP)

Akım Değeri

1A

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Type

Male Pin

Style

Board to Cable/Wire

Row Spacing Mating

0.050 (1.27mm)

Montaj Tipi

Surface Mount

Number Of Contacts

12

Sıra Sayısı

2

Montaj

Surface Mount

Insulation Height

0.222 5.65mm

Terminal

Solder
