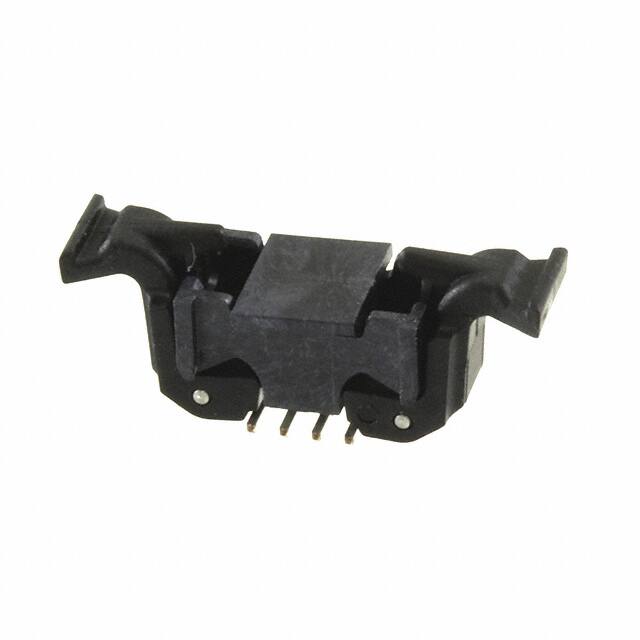

45208-220230

Specifications

Özellikler

Keying Slot, Pick and Place

Pitch

1.27mm

Contact Plating

Gold

Number Of Contacts

8

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Parça Durumu

Active

Fastening Type

Latch Lock/Eject Hooks, Short

Current Rating Amps

1A

Pozisyon Sayısı

8

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.222 5.65mm

Akım Değeri

1A

Montaj

Surface Mount

Contact Finish Mating

Gold

Housing Material

Liquid Crystal Polymer

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Pitch Mating

0.050 1.27mm

Contact Type

Male Pin

Contact Materials

Copper Alloy

Maks. Çalışma Sıcaklığı

105°C

Contact Gender

Male

Min. Çalışma Sıcaklığı

-55°C

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Post

200.0μin 5.08μm

Flammability Rating

UL94 V-0

Nominal Gerilim

125V

Montaj Tipi

Surface Mount

Shrouding

Shrouded - 4 Wall

Seri

452

Stack Height Mating

5.84mm 6.60mm 7.21mm 8.13mm

Row Spacing Mating

0.050 (1.27mm)

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Number Of Positions Loaded

All
