Volume pricing
- 1+ pcs$7.93
- 10+ pcs$7.48
- 100+ pcs$7.06
- 500+ pcs$6.66
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

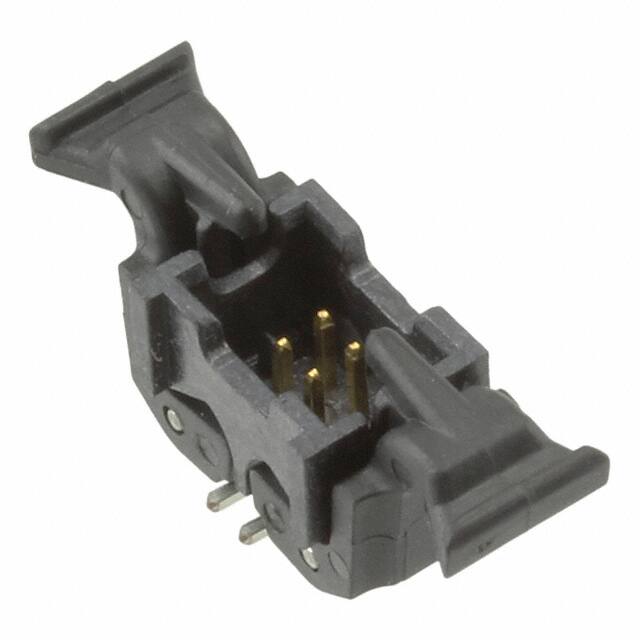

Specifications
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pozisyon Sayısı
- 4
- Fabrika Tedarik Süresi
- 10 Weeks
- Connector Type
- Header
- Montaj
- Surface Mount
- Contact Finish Mating
- Gold
- Insulation Height
- 0.222 5.65mm
- Akım Değeri
- 1A
- Housing Material
- Liquid Crystal Polymer
- Pitch
- 1.27mm
- Özellikler
- Keying Slot, Pick and Place
- Contact Plating
- Gold
- Number Of Contacts
- 4
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Contact Finish Post
- Tin
- Parça Durumu
- Active
- Fastening Type
- Latch Lock/Eject Hooks, Short
- Current Rating Amps
- 1A
- Style
- Board to Cable/Wire
- RoHS Durumu
- ROHS3 Compliant
- Flammability Rating
- UL94 V-0
- Nominal Gerilim
- 125V
- Seri
- 452
- Stack Height Mating
- 5.84mm 6.60mm 7.21mm 8.13mm
- Montaj Tipi
- Surface Mount
- Shrouding
- Shrouded - 4 Wall
- Row Spacing Mating
- 0.050 (1.27mm)
- Material Flammability Rating
- UL94 V-0
- Sıra Sayısı
- 2
- Çalışma Sıcaklığı
- -65°C~125°C
- Number Of Positions Loaded
- All
- Contact Shape
- Square
- Yayın Yılı
- 2013
- Terminal
- Solder
- Ambalaj
- Tape & Reel (TR)
- Contact Type
- Male Pin
- Contact Materials
- Copper Alloy
- Pitch Mating
- 0.050 1.27mm
- Min. Çalışma Sıcaklığı
- -55°C
- Insulation Materials
- Liquid Crystal Polymer (LCP)
