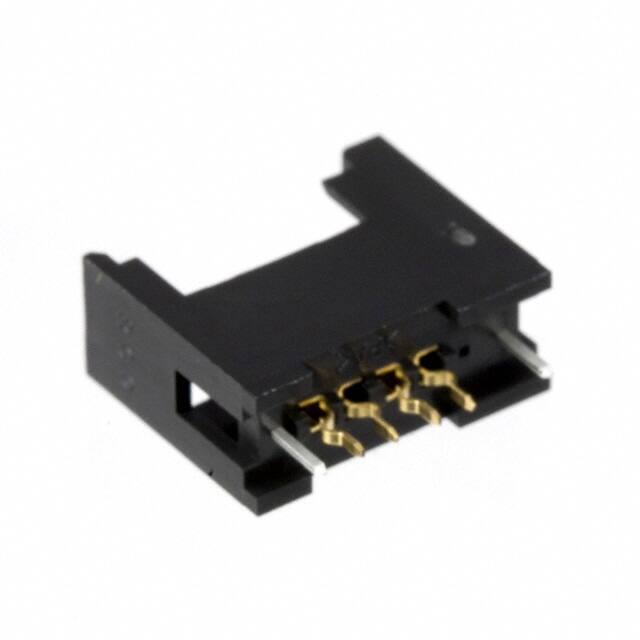

37204-62A3-004PL

Specifications

Parça Durumu

Active

Pitch

2mm

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Seri

Mini-Clamp I, 372

RoHS Durumu

RoHS Compliant

Ambalaj

Bulk

Contact Length Post

0.102 2.60mm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Type

Female Socket

Özellikler

Board Guide

Connector Type

Receptacle

Gender

Receptacle

Contact Finish Thickness Mating

8.00μin 0.203μm

Yayın Yılı

2008

Orientation

Straight

Reach Svhc

Unknown

Housing Color

Black

Renk

Black

Sıra Sayısı

1

Contact Finish Post

Gold

Akım Değeri

3A

Montaj

Through Hole

Depth

6.4mm

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Terminal

Kinked Pin, Solder

Uzunluk

15.8mm

Min. Çalışma Sıcaklığı

-20°C

Contact Finish Mating

Gold

Pitch Mating

0.079 2.00mm

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Fastening Type

Latch Holder

Number Of Contacts

4

Housing Material

Nylon

Current Rating Amps

3A
