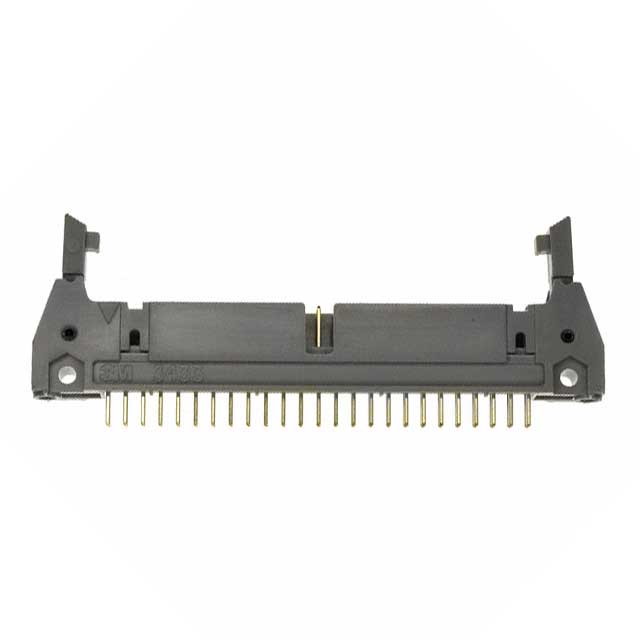

3433-6303

Specifications

Yayın Yılı

2008

Contact Finish Thickness Mating

30.0μin 0.76μm

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Contact Finish Mating

Gold

Özellikler

Keying Slot, Mounting Flange

Ambalaj

Bulk

Contact Finish Post

Tin-Lead

Parça Durumu

Last Time Buy

Number Of Contacts

50

Contact Shape

Square

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Lengthmating

0.240 6.10mm

Pitch

2.54mm

Housing Material

Plastic

Row Spacing Mating

0.100 (2.54mm)

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Terminal

Solder

Current Rating Amps

1A

Fastening Type

Latch Lock/Eject Hooks, Long

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Gender

Male

Montaj Tipi

Through Hole

Weight

1.451496kg

Reach Svhc

Unknown

Max Current Rating

2A

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Housing Color

Grey

Insulation Height

0.680 17.27mm

Kurşunsuz

Contains Lead

Renk

Black, Grey

Overall Contact Length

0.695 17.65mm

Contact Type

Male Pin

Contact Length Post

0.155 3.94mm

Çalışma Sıcaklığı

-55°C~105°C

Sıra Sayısı

2

Seri

3000
