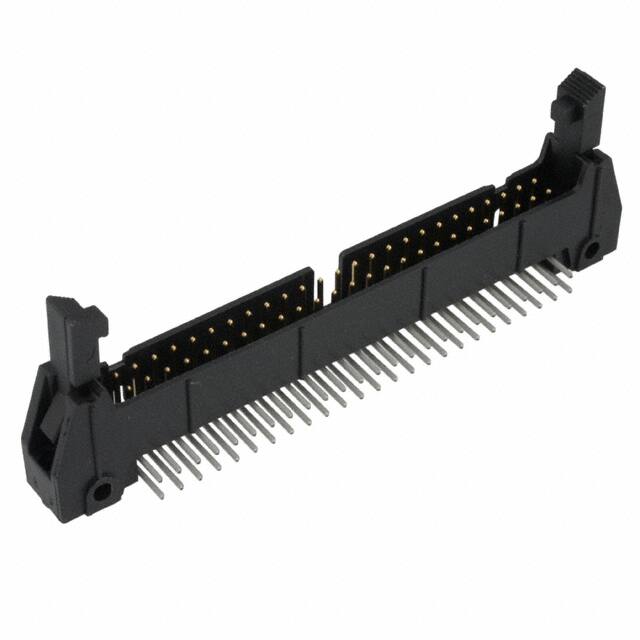

3433-5302

Specifications

Fastening Type

Latch Lock/Eject Hooks, Long

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Gender

Male

Montaj Tipi

Through Hole, Right Angle

Lead Pitch

2.54mm

Insulation Resistance

1GOhm

RoHS Durumu

Non-RoHS Compliant

Contact Plating

Gold

Connector Type

Header

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Solder

Current Rating Amps

1.75A

Pozisyon Sayısı

50

Number Of Positions Loaded

All

Housing Material

Polyester

Row Spacing Mating

0.100 (2.54mm)

Sıra Sayısı

2

Seri

3000

Contact Length Post

0.112 2.84mm

Pitch

2.54mm

Çalışma Sıcaklığı

-55°C~105°C

Contact Type

Male Pin

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Lengthmating

0.240 6.10mm

Flammability Rating

UL94 V-0

Renk

Grey

Contact Shape

Square

Parça Durumu

Last Time Buy

Insulation Height

0.340 8.64mm

Number Of Contacts

50

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Finish Post

Tin-Lead

Style

Board to Board or Cable

Housing Color

Grey

Contact Finish Mating

Gold

Özellikler

Keying Slot, Mounting Flange

Contact Materials

Copper Alloy
