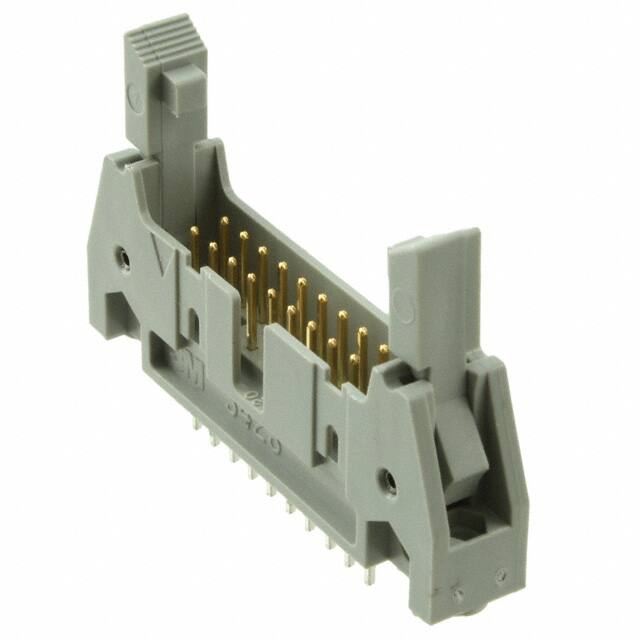

3428-6303

Specifications

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Lengthmating

0.240 6.10mm

Pitch

2.54mm

Row Spacing Mating

0.100 (2.54mm)

Housing Material

Polyester

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Current Rating Amps

1A

Terminal

Solder

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Lock/Eject Hooks, Long

Montaj Tipi

Through Hole

Yayın Yılı

2009

Contact Finish Thickness Mating

30.0μin 0.76μm

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Özellikler

Keying Slot, Mounting Flange

Contact Finish Post

Tin-Lead

Ambalaj

Bulk

Number Of Contacts

20

Parça Durumu

Last Time Buy

Contact Shape

Square

Contact Type

Male Pin

Overall Contact Length

0.695 17.65mm

Contact Length Post

0.155 3.94mm

Çalışma Sıcaklığı

-55°C~105°C

Sıra Sayısı

2

Seri

3000

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

6 Weeks

Connector Type

Header

Orientation

Straight

Pozisyon Sayısı

20

Insulation Resistance

1GOhm

Contact Plating

Gold

RoHS Durumu

Non-RoHS Compliant

Shrouding

Shrouded - 4 Wall

Lead Pitch

2.54mm

Weight

907.18474g
