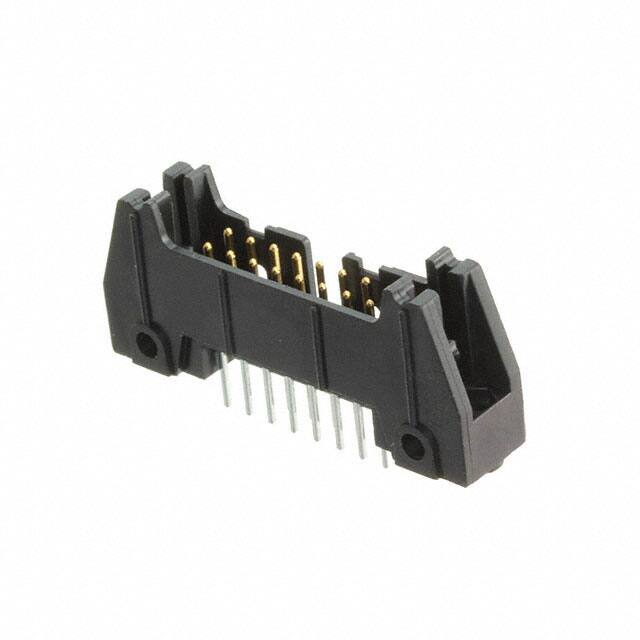

3408-6002

Specifications

Contact Finish Thickness Post

200.0μin 5.08μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Özellikler

Keying Slot, Mounting Flange

Depth

8.6mm

Uzunluk

39.75mm

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Housing Color

Grey

Max Current Rating

2A

Yayın Yılı

2003

Flammability Rating

UL94 V-0

Maks. Çalışma Sıcaklığı

105°C

Terminal

Solder

Yükseklik

17.3mm

Housing Material

Polyester

RoHS Durumu

Non-RoHS Compliant

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Insulation Height

0.680 17.27mm

Parça Durumu

Active

Montaj

Through Hole

Insulation Color

Black

Nominal Gerilim

1kV

Number Of Positions Loaded

All

Style

Board to Board or Cable

Contact Finish Mating

Gold

Connector Type

Header

Pitch Mating

0.100 2.54mm

Number Of Contacts

16

Contact Finish Thickness Mating

30.0μin 0.76μm

Renk

Grey

Pitch

2.54mm

Weight

680.388555g

Fastening Type

Push-Pull

Onay Kuruluşu

UL

Montaj Tipi

Through Hole

Pozisyon Sayısı

16

Contact Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C
