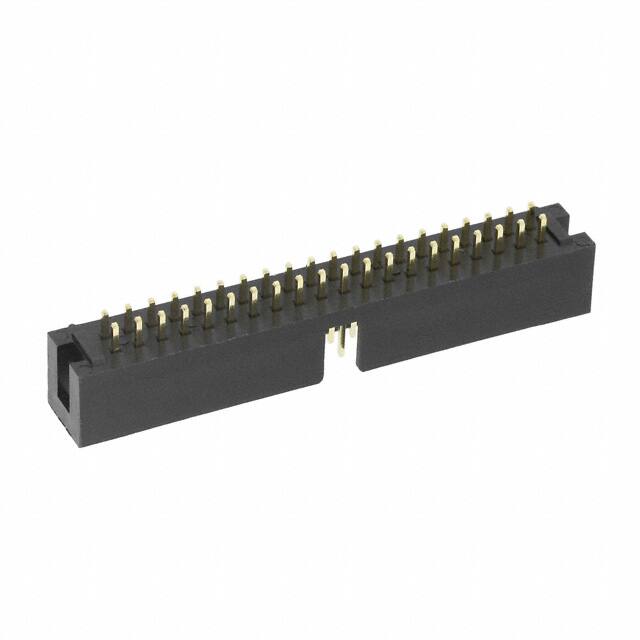

30340-6002HB

Specifications

Gender

Male

Shrouding

Shrouded - 4 Wall

Insulation Height

0.366 9.30mm

Montaj Tipi

Through Hole

Max Current Rating

1A

Contact Length Post

0.110 2.79mm

Özellikler

Keying Slot

Connector Type

Header

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Housing Material

Polyester

Orientation

Straight

Reach Svhc

No SVHC

Sıra Sayısı

2

Current Rating Amps

1A

Contact Finish Thickness Mating

Flash

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Housing Color

Black

Contact Type

Male Pin

Fabrika Tedarik Süresi

9 Weeks

Contact Finish Mating

Gold

Contact Finish Post

Gold

Kurşunsuz

Lead Free

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.236 6.00mm

Depth

8.78mm

Insulation Color

Black

Parça Durumu

Active

Pitch

2.54mm

Mating Post Length

5.99mm

Material Flammability Rating

UL94 V-0

Yayın Yılı

2008

Renk

Black

Pozisyon Sayısı

40

Seri

303

Fastening Type

Push-Pull

Insulation Materials

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Row Spacing Mating

0.100 (2.54mm)
