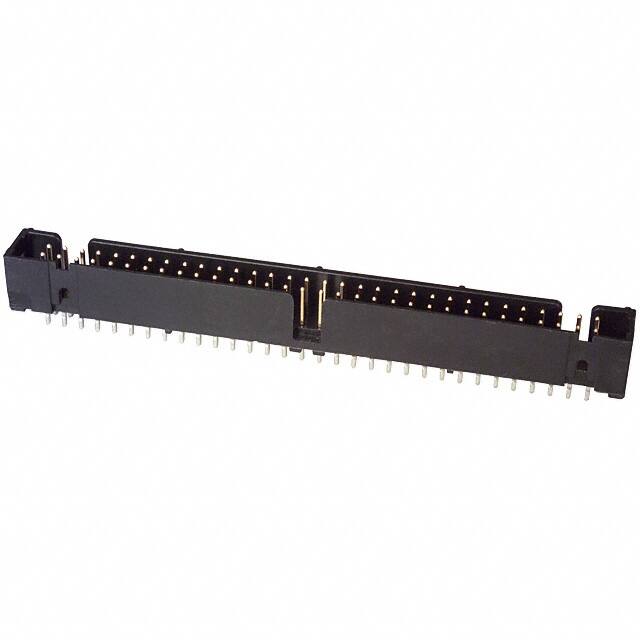

2564-6002UG

Specifications

Yayın Yılı

2009

Contact Length Post

0.112 2.84mm

Housing Color

Grey

Number Of Positions Loaded

All

Insulation Color

Black

Contact Finish Mating

Gold

Yükseklik

9.4mm

Style

Board to Board or Cable

Özellikler

Keying Slot

Lead Pitch

2.54mm

Seri

2500

Terminal

Solder

Contact Lengthmating

0.243 6.17mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Genişlik

8.59mm

Contact Finish Post

Tin-Lead

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Pin Sayısı

64

Row Spacing Mating

0.100 (2.54mm)

Current Rating Amps

1.75A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

6 Weeks

Connector Type

Header

Contact Plating

Gold

Renk

Grey

Parça Durumu

Active

Contact Materials

Copper Alloy

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Fastening Type

Push-Pull

Housing Material

Plastic

Ambalaj

Bulk

Shrouding

Shrouded - 4 Wall

Insulation Height

0.390 9.91mm

Pitch

2.54mm

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~105°C

Contact Type

Male Pin
