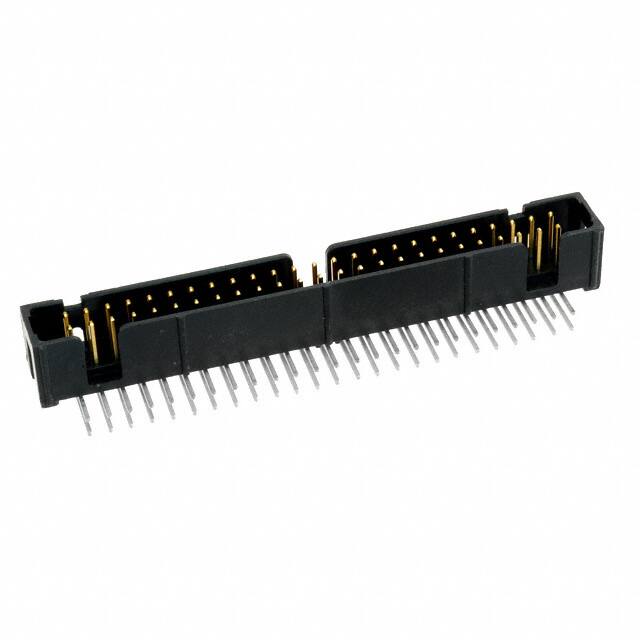

2550-5002UG

Specifications

Contact Length Post

0.112 2.84mm

Contact Lengthmating

0.243 6.17mm

Contact Finish Post

Tin-Lead

RoHS Durumu

Non-RoHS Compliant

Terminal

Solder

Fabrika Tedarik Süresi

6 Weeks

Insulation Color

Black

Fastening Type

Push-Pull

Contact Plating

Gold

Row Spacing Mating

0.100 (2.54mm)

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Connector Type

Header

Min. Çalışma Sıcaklığı

-55°C

Genişlik

9.65mm

Özellikler

Keying Slot

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Bulk

Pozisyon Sayısı

50

Seri

2500

Sıra Sayısı

2

Housing Color

Grey

Lead Pitch

2.54mm

Current Rating Amps

1.75A

Housing Material

Polybutylene

Contact Materials

Copper Alloy

Maks. Çalışma Sıcaklığı

105°C

Pitch Mating

0.100 2.54mm

Contact Type

Male Pin

Yükseklik

8.59mm

Yayın Yılı

2009

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

15.0μin 0.38μm

Insulation Height

0.338 8.59mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole, Right Angle

Çalışma Sıcaklığı

-55°C~105°C

Pin Sayısı

50
