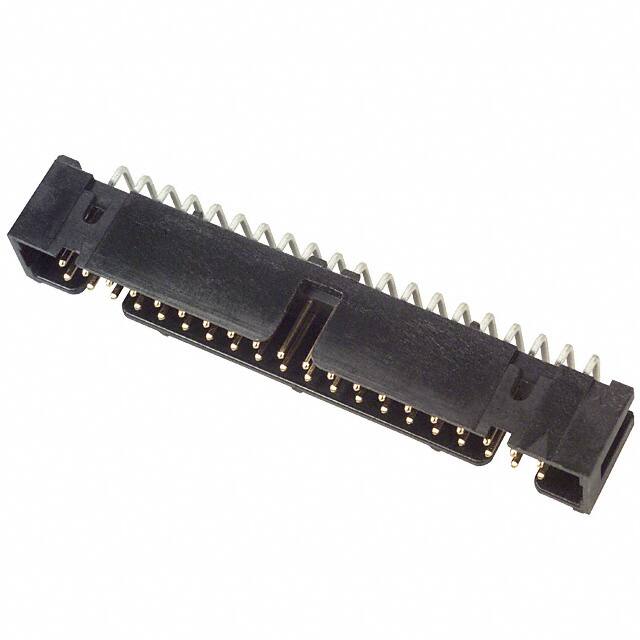

2540-5002UG

Specifications

Yükseklik

8.59mm

Pitch

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

6 Weeks

Özellikler

Keying Slot

Row Spacing Mating

0.100 (2.54mm)

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~105°C

Seri

2500

Connector Type

Header

Housing Color

Grey

Montaj

Through Hole

Pin Sayısı

40

Contact Length Post

0.112 2.84mm

Min. Çalışma Sıcaklığı

-55°C

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Uzunluk

58.12mm

Max Current Rating

1.75A

Contact Shape

Square

Insulation Color

Black

RoHS Durumu

Non-RoHS Compliant

Contact Lengthmating

0.243 6.17mm

Contact Finish Thickness Post

200.0μin 5.08μm

Depth

12.44mm

Pozisyon Sayısı

40

Contact Finish Thickness Mating

15.0μin 0.38μm

Sıra Sayısı

2

Weight

725.747792g

Insulation Height

0.338 8.59mm

Housing Material

Polybutylene

Contact Type

Male Pin

Contact Finish Mating

Gold

Pitch Mating

0.100 2.54mm

Lead Pitch

2.54mm

Current Rating Amps

1.75A

Contact Plating

Gold

Genişlik

9.65mm

Montaj Tipi

Through Hole, Right Angle

Number Of Positions Loaded

All
