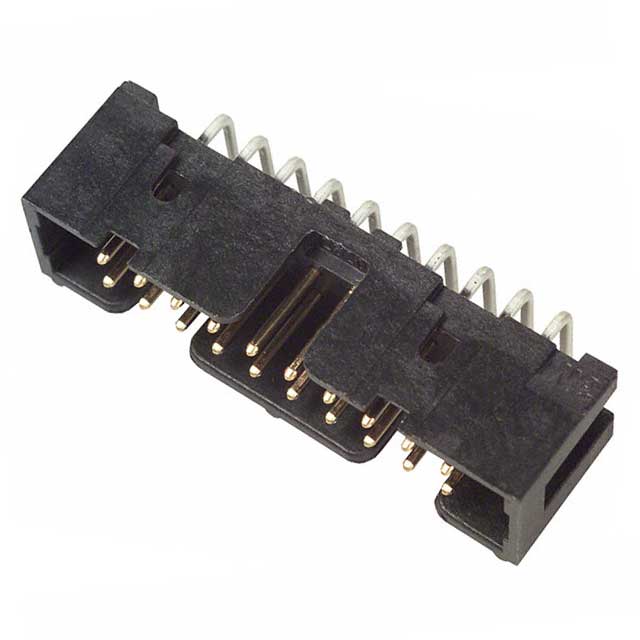

2520-5002UB

Specifications

Uzunluk

32.7mm

Nominal Gerilim

1kV

Material Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Montaj Tipi

Through Hole, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shrouding

Shrouded - 4 Wall

Gender

Male

Max Current Rating

2A

Contact Type

Male Pin

Contact Lengthmating

0.243 6.17mm

Akım Değeri

1.75A

Kurşunsuz

Contains Lead

RoHS Durumu

Non-RoHS Compliant

Pitch Mating

0.100 2.54mm

Housing Color

Grey

Contact Finish Thickness Post

200.0μin 5.08μm

Sıra Sayısı

2

Current Rating Amps

1.75A

Connector Type

Header

Onay Kuruluşu

UL

Contact Finish Mating

Gold

Contact Gender

Male

Insulation Height

0.338 8.59mm

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board or Cable

Parça Durumu

Last Time Buy

Çalışma Sıcaklığı

-55°C~105°C

Fabrika Tedarik Süresi

6 Weeks

Contact Length Post

0.112 2.84mm

Insulation Color

Black

Pozisyon Sayısı

20

Contact Plating

Gold

Özellikler

Keying Slot

Contact Materials

Copper Alloy

Orientation

Right Angle

Contact Finish Thickness Mating

30.0μin 0.76μm

Maks. Çalışma Sıcaklığı

105°C

Contact Shape

Square

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
