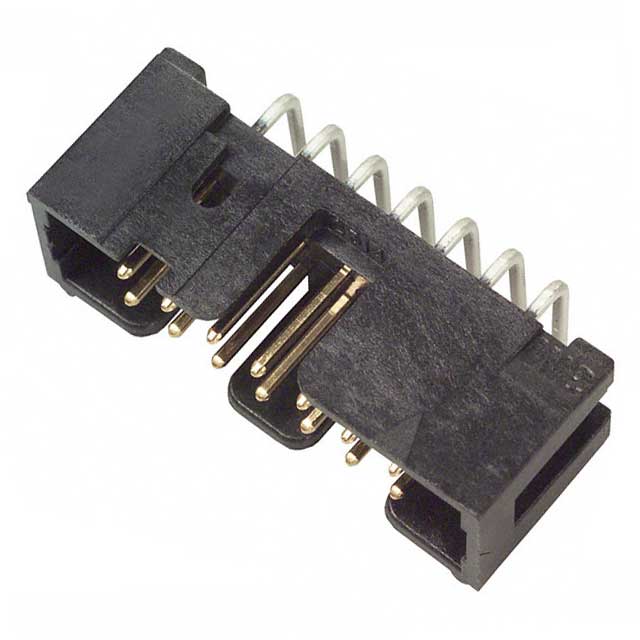

2514-5002UB

Specifications

Seri

2500

Sıra Sayısı

2

Insulation Height

0.338 8.59mm

Shrouding

Shrouded - 4 Wall

Özellikler

Keying Slot

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Contact Shape

Square

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

1.75A

Housing Color

Grey

Pozisyon Sayısı

14

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Contact Plating

Gold

Kurşunsuz

Contains Lead

Contact Finish Post

Tin-Lead

Ambalaj

Bulk

Contact Finish Thickness Post

200.0μin 5.08μm

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-55°C~105°C

Pitch

2.54mm

Min. Çalışma Sıcaklığı

-55°C

Connector Type

Header

Lead Pitch

2.54mm

Gender

Male

Renk

Grey

Contact Lengthmating

0.243 6.17mm

Terminal

Solder

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

6 Weeks

Montaj Tipi

Through Hole, Right Angle

Style

Board to Board or Cable

Yayın Yılı

2009

RoHS Durumu

Non-RoHS Compliant

Insulation Color

Black

Contact Materials

Copper Alloy

Row Spacing Mating

0.100 (2.54mm)

Max Current Rating

2A
