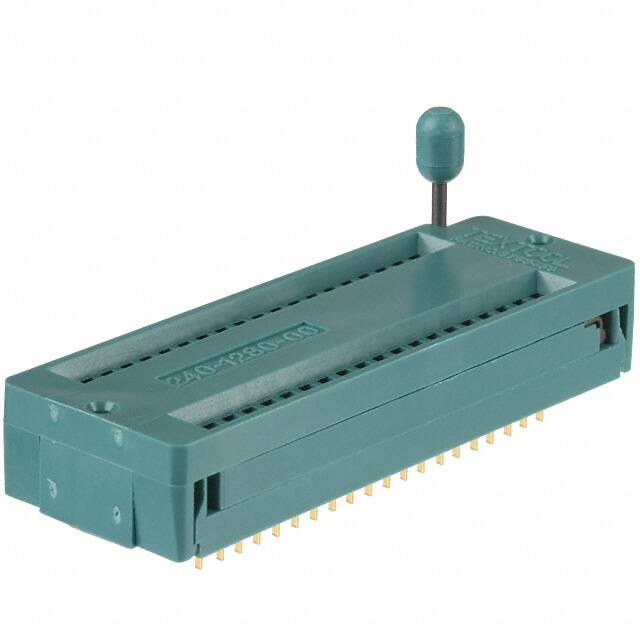

Specifications
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Materials
- Copper
- Depth
- 22.9mm
- Orientation
- Straight
- Material Flammability Rating
- UL94 V-0
- Termination Post Length
- 0.110 2.78mm
- Montaj Tipi
- Connector
- Montaj
- Through Hole
- Nominal Gerilim
- 1kV
- Seri
- Textool™
- Min. Çalışma Sıcaklığı
- -55°C
- Kılıf / Paket
- DIP
- Contact Finish Mating
- Gold
- Number Of Contacts
- 40
- Yayın Yılı
- 2000
- Genişlik
- 11.9mm
- Row Spacing
- 15.24 mm
- Insulation Resistance
- 1GOhm
- Pitch
- 2.54mm
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Contact Finish Thickness Post
- 30.0μin 0.76μm
- Pin Sayısı
- 40
- Maks. Çalışma Sıcaklığı
- 150°C
- Contact Material Post
- Beryllium Copper
- Contact Material Mating
- Beryllium Copper
- Weight
- 453.59237g
- Flammability Rating
- UL94 V-0
- Contact Plating
- Gold
- Number Of Positions Or Pins Grid
- 40 (2 x 20)
- RoHS Durumu
- RoHS Compliant
- Pozisyon Sayısı
- 40
- Terminal
- Press-Fit
- Contact Finish Post
- Gold
- Insulation Materials
- Glass fibre
- Contact Resistance
- 15mOhm
- Fabrika Tedarik Süresi
- 8 Weeks
- Ambalaj
- Tube
- Pitch Post
- 0.100 2.54mm
- Uzunluk
- 77.9mm
- Body Material
- Glass, Polysulfone
