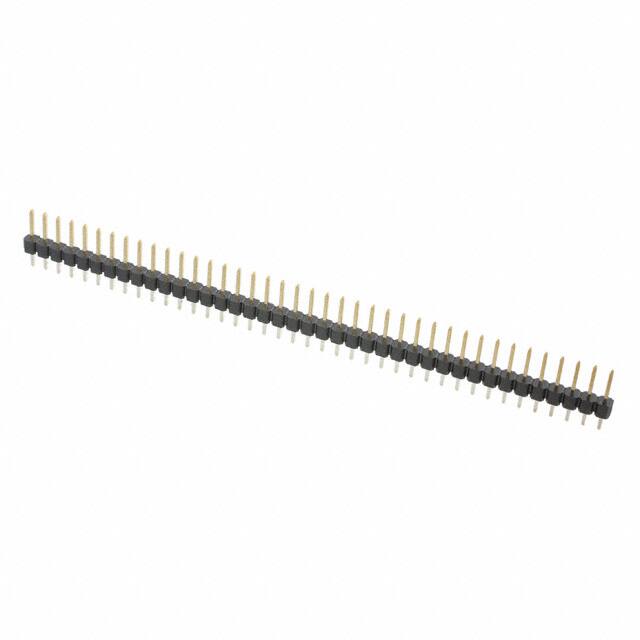

2340-6111TG

Specifications

Overall Contact Length

0.450 11.43mm

Contact Lengthmating

0.230 5.84mm

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

105°C

Kılıf / Paket

TO-226-3

Style

Board to Board or Cable

Uzunluk

6.35mm

Renk

Black

Contact Finish Post

Tin-Lead

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Contact Length Post

0.120 3.05mm

Ambalaj

Bulk

Insulation Height

0.100 2.54mm

Number Of Contacts

40

Reach Svhc

No SVHC

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Insulation Materials

Thermoplastic, Glass Filled

Pitch

2.54mm

Shrouding

Unshrouded

Orientation

Straight

Connector Type

Header

Depth

2.54mm

Pitch Mating

0.100 2.54mm

Max Current Rating

3A

Çalışma Sıcaklığı

-55°C~105°C

Contact Plating

Gold

Contact Finish Thickness Mating

10.0μin 0.25μm

Min. Çalışma Sıcaklığı

-55°C

Current Rating Amps

3A

Contact Materials

Copper Alloy

Gender

Male

Yayın Yılı

2003

Housing Material

Thermoplastic

RoHS Durumu

Non-RoHS Compliant

Pozisyon Sayısı

40

Seri

2300

Contact Type

Male Pin

Sıra Sayısı

1
