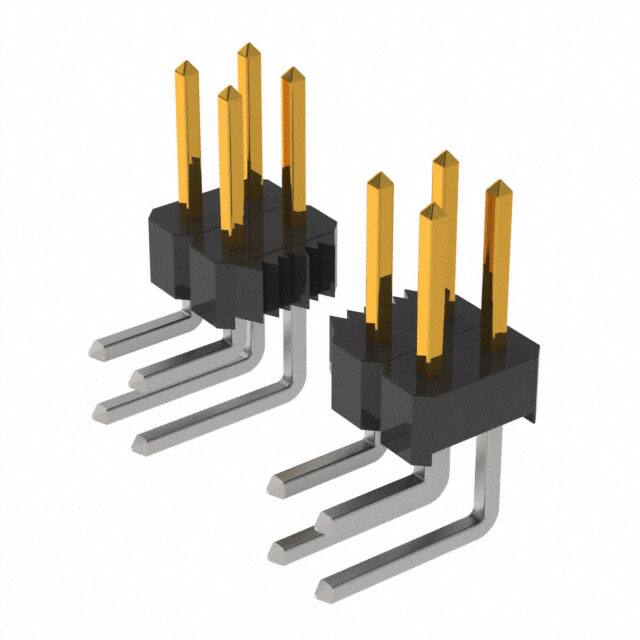

2306-5121-TB

Specifications

Montaj

Through Hole

Renk

Black

Contact Materials

Copper Alloy

Pozisyon Sayısı

6

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Shape

Square

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Shrouding

Unshrouded

RoHS Durumu

Non-RoHS Compliant

Contact Finish Post

Tin-Lead

Insulation Height

0.242 6.14mm

Montaj Tipi

Through Hole, Right Angle

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.230 5.84mm

Contact Length Post

0.110 2.79mm

Ambalaj

Bulk

Parça Durumu

Active

Seri

2300

Contact Finish Thickness Mating

30.0μin 0.76μm

Current Rating Amps

3A

Contact Type

Male Pin

Connector Type

Header

Pitch

2.54mm

Insulation Color

Black

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

9 Weeks

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Yayın Yılı

2008

Insulation Materials

Thermoplastic, Glass Filled

Style

Board to Board or Cable

Contact Plating

Gold

Sıra Sayısı

2
