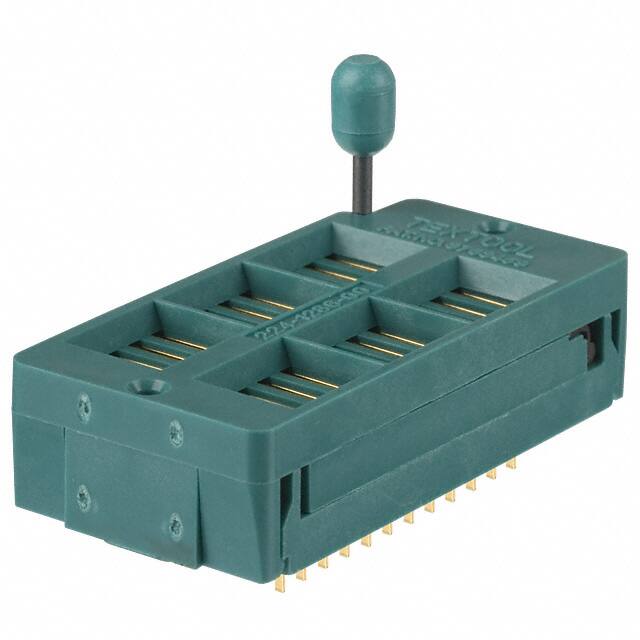

224-1286-00-0602J

Specifications

RoHS Durumu

RoHS Compliant

Kılıf / Paket

DIP

Contact Finish Post

Gold

Contact Finish Mating

Gold

Montaj Tipi

Connector

Flammability Rating

UL94 V-0

Tip

DIP, ZIF (ZIP), 0.6 (15.24mm) Row Spacing

Pitch Mating

0.100 2.54mm

Contact Plating

Gold

Termination Post Length

0.110 2.78mm

Lead Pitch

2.54mm

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Pitch

2.54mm

Akım Değeri

1A

Number Of Positions Or Pins Grid

24 (2 x 12)

Current Rating Amps

1A

Seri

Textool™

Sıra Sayısı

2

Pin Sayısı

24

Fabrika Tedarik Süresi

8 Weeks

Özellikler

Closed Frame

Pitch Post

0.100 2.54mm

Connector Type

DIP

Contact Finish Thickness Mating

30.0μin 0.76μm

Manufacturer Package Identifier

224-1286-00-0602J

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-55°C

Contact Material Mating

Beryllium Copper

Contact Material Post

Beryllium Copper

Number Of Contacts

24

Terminal

Press-Fit

Yayın Yılı

2001

Parça Durumu

Active

Pozisyon Sayısı

24

Maks. Çalışma Sıcaklığı

125°C

Contact Materials

Gold, Nickel

Weight

680.388555g

Contact Finish Thickness Post

30.0μin 0.76μm

Nem Hassasiyeti (MSL)

1 (Unlimited)
