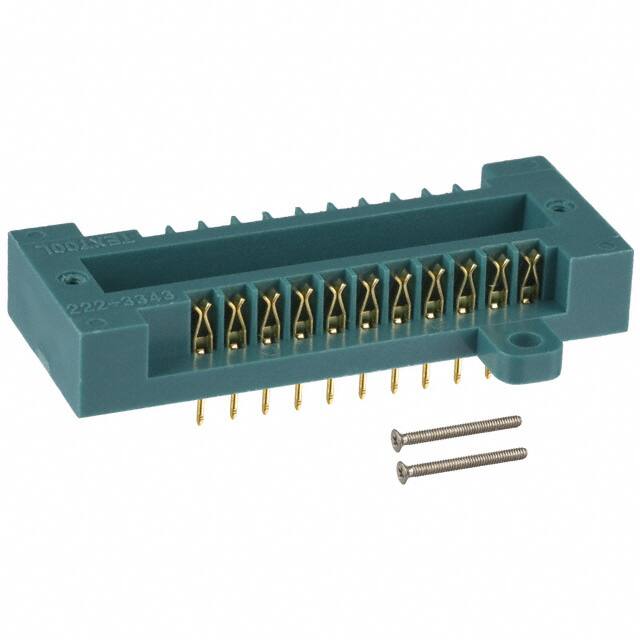

222-3343-09-0602J

Specifications

Min. Çalışma Sıcaklığı

-55°C

Gender

Female

Pitch

2.54mm

Convert From Adapter End

DIP, 0.4 (10.16mm) Row Spacing

Pitch Mating

0.100 2.54mm

Contact Finish Post

Gold

Pozisyon Sayısı

22

Housing Material

Polysulfone (PSU), Glass Filled

Fabrika Tedarik Süresi

8 Weeks

Material Flammability Rating

UL94 V-0

Contact Material Post

Beryllium Copper

Parça Durumu

Active

Current Rating Amps

1A

Montaj Tipi

Through Hole

Number Of Contacts

22

Kurşunsuz

Lead Free

Terminal

Solder

Convert To Adapter End

DIP, 0.4 (10.16mm) Row Spacing

Contact Materials

Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2001

Pitch Post

0.100 2.54mm

Contact Material Mating

Beryllium Copper

Termination Post Length

0.130 3.30mm

Seri

Textool™

Contact Finish Thickness Post

30.0μin 0.76μm

Montaj

Through Hole

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Maks. Çalışma Sıcaklığı

150°C

Pin Sayısı

22
