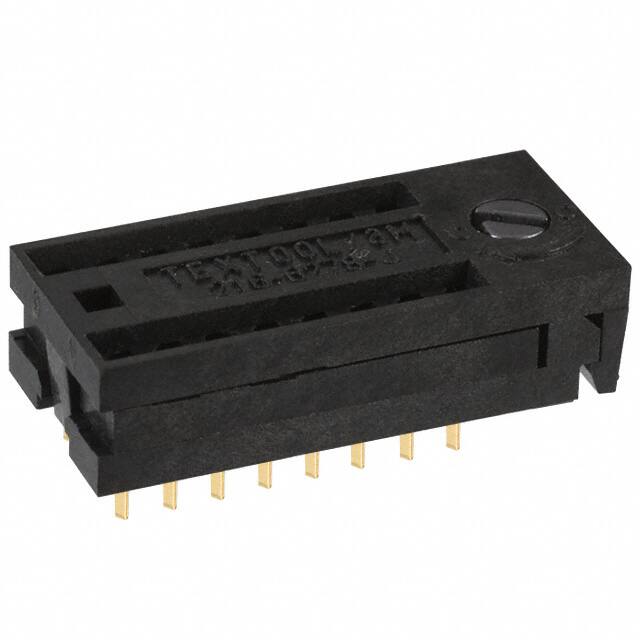

216-6278-00-3303

Specifications

Gender

Female

Fabrika Tedarik Süresi

8 Weeks

Tip

DIP, ZIF (ZIP), 0.3 (7.62mm) Row Spacing

Contact Finish Thickness Mating

250.0μin 6.35μm

Contact Material Post

Beryllium Copper

Contact Materials

Copper

RoHS Durumu

RoHS Compliant

Özellikler

Closed Frame

Yayın Yılı

2001

Parça Durumu

Active

Contact Finish Post

Gold

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

16 (2 x 8)

Pitch

2.54mm

Contact Finish Thickness Post

250.0μin 6.35μm

Maks. Çalışma Sıcaklığı

105°C

Terminal

Solder

Current Rating Amps

1A

Kurşunsuz

Contains Lead

Min. Çalışma Sıcaklığı

-55°C

Seri

OEM

Number Of Contacts

16

Weight

453.59237g

Montaj

Through Hole

Contact Material Mating

Beryllium Copper

Material Flammability Rating

UL94 V-0

Ambalaj

Tube

Sıra Sayısı

2

Termination Post Length

0.110 2.78mm

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

16

Pitch Mating

0.100 2.54mm

Housing Material

Polyether Imide (PEI), Glass Filled

Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pin Sayısı

16

Montaj Tipi

Through Hole

Contact Finish Mating

Gold
