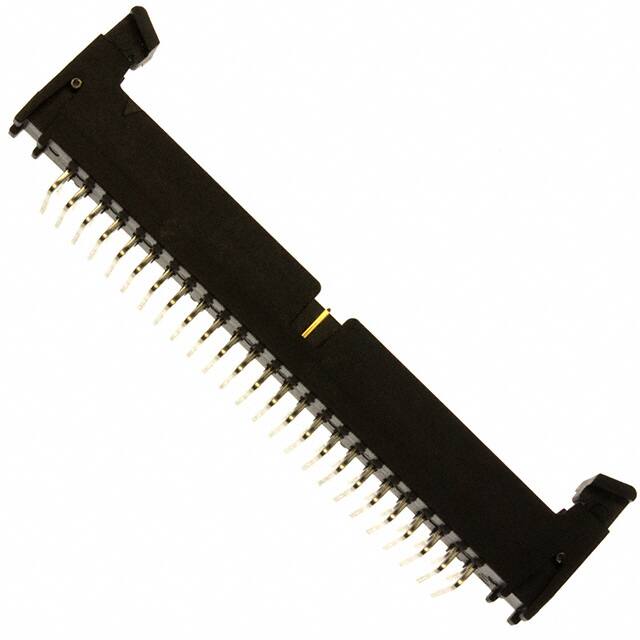

155250-5303-RB

Specifications

Gender

Male

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Renk

Black

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Insulation Height

0.247 6.28mm

Montaj Tipi

Through Hole, Right Angle

Flammability Rating

UL94 V-0

Pozisyon Sayısı

50

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Post

Tin

Contact Lengthmating

0.150 3.81mm

Row Spacing Mating

0.079 (2.00mm)

Terminal

Solder

Number Of Contacts

50

Number Of Positions Loaded

All

Contact Type

Male Pin

Akım Değeri

1A

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Gold

Montaj

Through Hole

Sıra Sayısı

2

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.155 3.94mm

Contact Plating

Gold

Contact Finish Thickness Post

200.0μin 5.08μm

Fastening Type

Latch Lock/Eject Hooks

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Contact Shape

Square

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Pitch

2.0066mm

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Connector Type

Header

Lead Pitch

2mm
