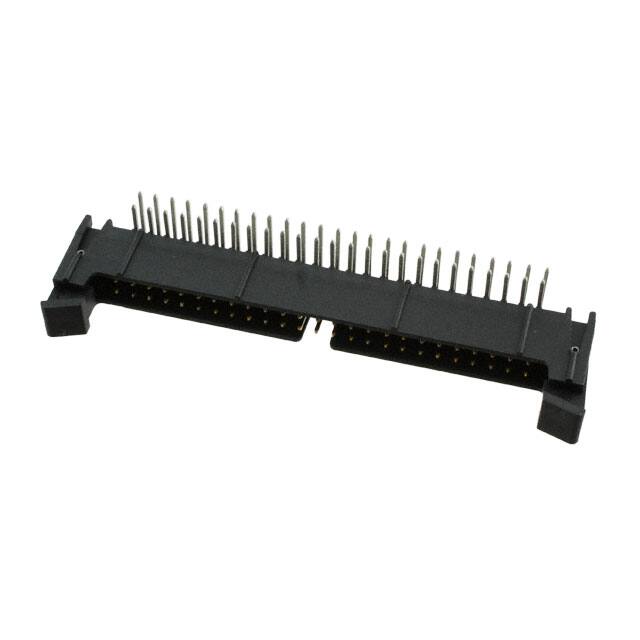

155250-5202-RB

Specifications

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Number Of Contacts

50

Row Spacing Mating

0.079 (2.00mm)

Terminal

Solder

Akım Değeri

1A

Contact Type

Male Pin

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Post

Tin

Contact Lengthmating

0.150 3.81mm

Montaj Tipi

Through Hole, Right Angle

Flammability Rating

UL94 V-0

Pozisyon Sayısı

50

Parça Durumu

Active

Insulation Height

0.247 6.28mm

Shrouding

Shrouded - 4 Wall

Ambalaj

Tray

Renk

Black

Material Flammability Rating

UL94 V-0

Gender

Male

Current Rating Amps

1.25A

Yayın Yılı

2007

Contact Materials

Copper Alloy

Lead Pitch

2mm

Seri

1552

Pitch

2.0066mm

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Connector Type

Header

Contact Shape

Square

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Thickness Post

200.0μin 5.08μm

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

8 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire
