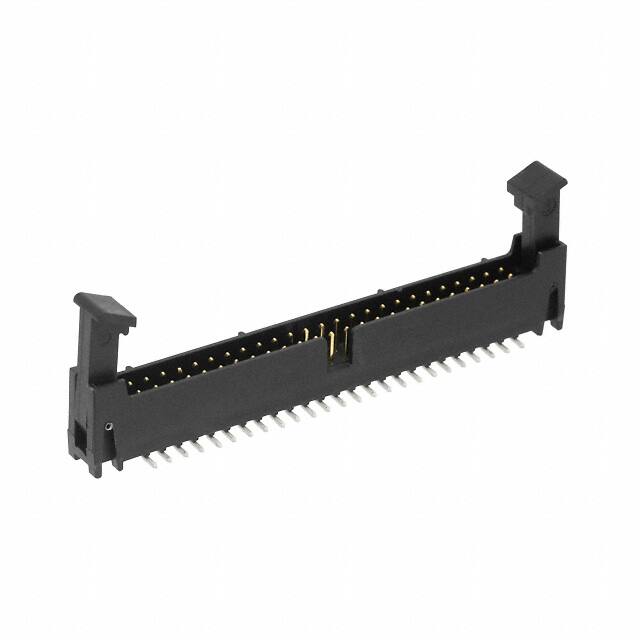

155250-2400-RB

Specifications

Fabrika Tedarik Süresi

6 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Contact Plating

Gold

Montaj

Surface Mount

Sıra Sayısı

2

Contact Shape

Square

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Thickness Post

200.0μin 5.08μm

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Pitch

2.0066mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Insulation Color

Black

Connector Type

Header

Pitch Mating

0.079 2.00mm

Current Rating Amps

1.25A

Yayın Yılı

2009

Contact Materials

Copper Alloy

Seri

1552

Ambalaj

Bulk

Renk

Black

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Insulation Height

0.425 10.80mm

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Lengthmating

0.150 3.81mm

Contact Finish Post

Tin

Montaj Tipi

Surface Mount

Pozisyon Sayısı

50

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Row Spacing Mating

0.079 (2.00mm)

Terminal

Solder

Kılıf / Paket

SMD/SMT

Contact Type

Male Pin
