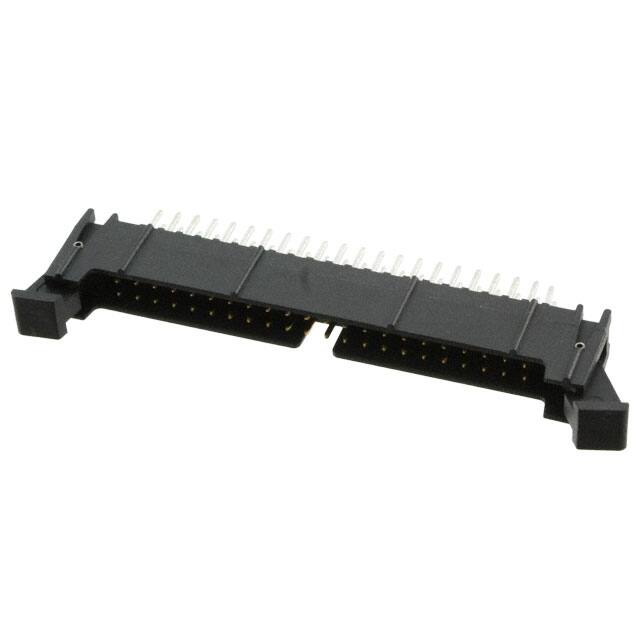

155244-6203-RB

Specifications

Material Flammability Rating

UL94 V-0

Renk

Black

Ambalaj

Tray

Gender

Male

Orientation

Straight

Insulation Height

0.425 10.80mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.150 3.81mm

Contact Finish Post

Tin

Contact Finish Thickness Mating

30.0μin 0.76μm

Min. Çalışma Sıcaklığı

-55°C

Montaj Tipi

Through Hole

Flammability Rating

UL94 V-0

Pozisyon Sayısı

44

Max Current Rating

1A

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~105°C

Contact Type

Male Pin

Akım Değeri

1A

Maks. Çalışma Sıcaklığı

105°C

Terminal

Solder

Row Spacing Mating

0.079 (2.00mm)

Number Of Contacts

44

Number Of Positions Loaded

All

Contact Length Post

0.155 3.94mm

Contact Plating

Gold

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

6 Weeks

Sıra Sayısı

2

Montaj

Through Hole

Contact Shape

Square

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Post

200.0μin 5.08μm

Fastening Type

Latch Lock/Eject Hooks

Connector Type

Header

Pitch Mating

0.079 2.00mm

Insulation Color

Black
