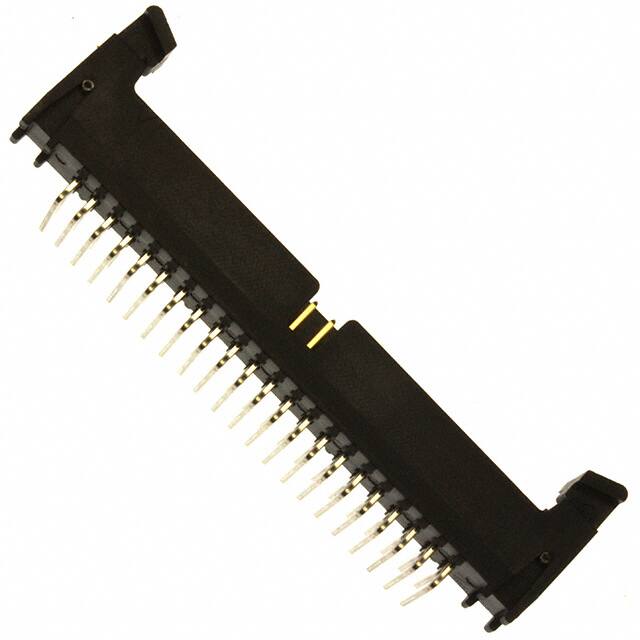

155244-5303-RB

Specifications

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Thickness Post

200.0μin 5.08μm

Contact Shape

Square

Montaj

Through Hole

Sıra Sayısı

2

Contact Length Post

0.155 3.94mm

Contact Plating

Gold

Fabrika Tedarik Süresi

8 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Seri

1552

Contact Materials

Copper Alloy

Lead Pitch

2mm

Yayın Yılı

2007

Current Rating Amps

1.25A

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Connector Type

Header

Pitch

2.0066mm

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Shrouding

Shrouded - 4 Wall

Insulation Height

0.247 6.28mm

Parça Durumu

Active

Gender

Male

Renk

Black

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Akım Değeri

1A

Contact Type

Male Pin

Number Of Contacts

44

Number Of Positions Loaded

All

Row Spacing Mating

0.079 (2.00mm)

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Gold

Pozisyon Sayısı

44

Flammability Rating

UL94 V-0
