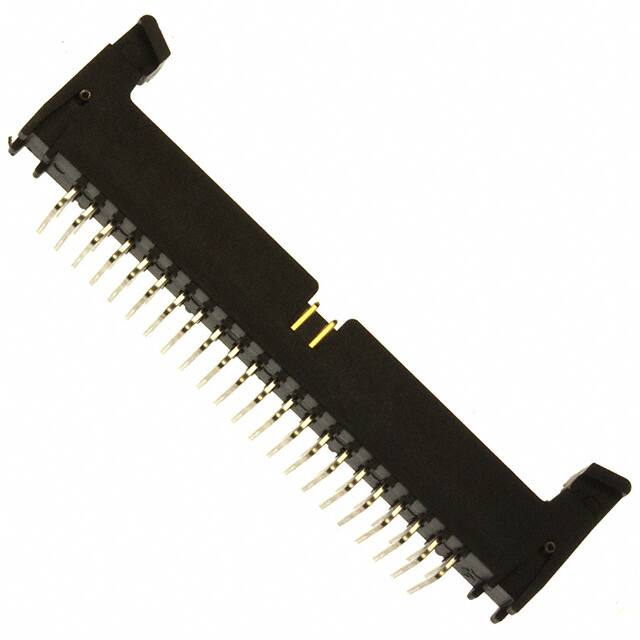

155244-5302-RB

Specifications

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

44

Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Contact Lengthmating

0.150 3.81mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Akım Değeri

1A

Contact Type

Male Pin

Number Of Contacts

44

Number Of Positions Loaded

All

Terminal

Solder

Row Spacing Mating

0.079 (2.00mm)

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Gold

Gender

Male

Renk

Black

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Shrouding

Shrouded - 4 Wall

Insulation Height

0.247 6.28mm

Parça Durumu

Active

Connector Type

Header

Pitch Mating

0.079 2.00mm

Insulation Color

Black

Pitch

2.0066mm

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Seri

1552

Contact Materials

Copper Alloy

Lead Pitch

2mm

Yayın Yılı

2007

Current Rating Amps

1.25A

Montaj

Through Hole

Sıra Sayısı

2

Contact Length Post

0.112 2.84mm

Contact Plating

Gold

Fabrika Tedarik Süresi

8 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Özellikler

Keying Slot
