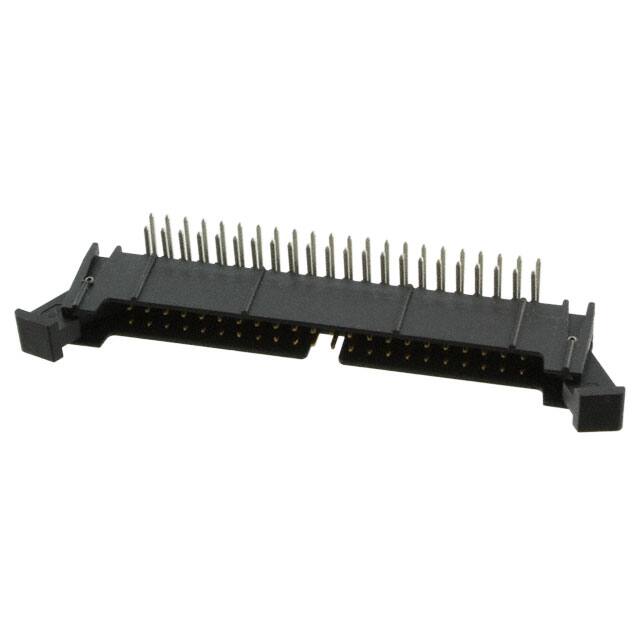

155244-5202-RB

Specifications

Number Of Contacts

44

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Current Rating

1A

Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.247 6.28mm

Ambalaj

Tray

Uzunluk

55.09mm

Yayın Yılı

2007

Contact Materials

Copper Alloy

Lead Pitch

2mm

Pitch

2mm

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Pitch Mating

0.079 2.00mm

Connector Type

Header

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Thickness Post

200.0μin 5.08μm

RoHS Durumu

RoHS Compliant

Contact Plating

Gold

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~105°C

Number Of Positions Loaded

All

Terminal

Solder

Maks. Çalışma Sıcaklığı

105°C

Akım Değeri

1A

Contact Type

Male Pin

Housing Material

Polychlorinated

Contact Lengthmating

0.150 3.81mm

Contact Finish Post

Tin

Pozisyon Sayısı

44

Min. Çalışma Sıcaklığı

-55°C

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Renk

Black

Material Flammability Rating

UL94 V-0

Housing Color

Black

Orientation

Right Angle

Depth

12.9mm
