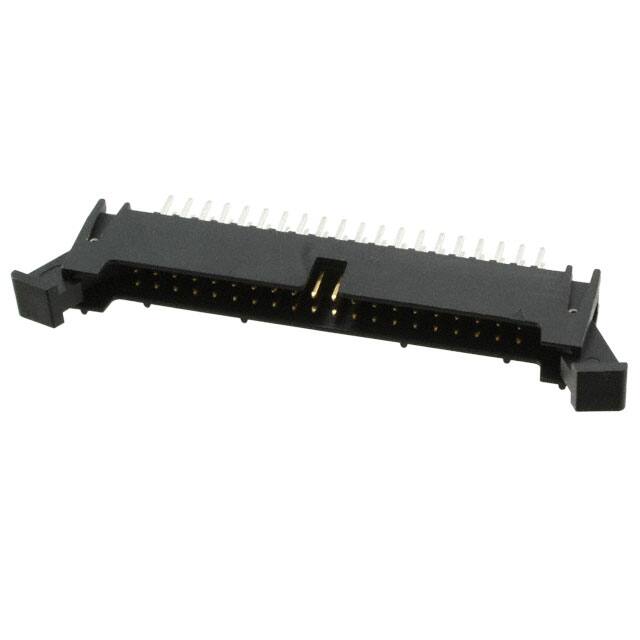

155240-6203-RB

Specifications

Current Rating Amps

1.25A

Yayın Yılı

2009

Contact Materials

Copper Alloy

Lead Pitch

2mm

Seri

1552

Pitch

2.0066mm

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Connector Type

Header

Contact Shape

Square

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Thickness Post

200.0μin 5.08μm

Özellikler

Keying Slot

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

6 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Contact Length Post

0.155 3.94mm

Contact Plating

Gold

Montaj

Through Hole

Sıra Sayısı

2

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~105°C

Number Of Positions Loaded

All

Number Of Contacts

40

Terminal

Solder

Row Spacing Mating

0.079 (2.00mm)

Akım Değeri

1A

Contact Type

Male Pin

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Post

Tin

Contact Lengthmating

0.150 3.81mm

Pozisyon Sayısı

40

Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Parça Durumu

Active

Insulation Height

0.425 10.80mm

Shrouding

Shrouded - 4 Wall
