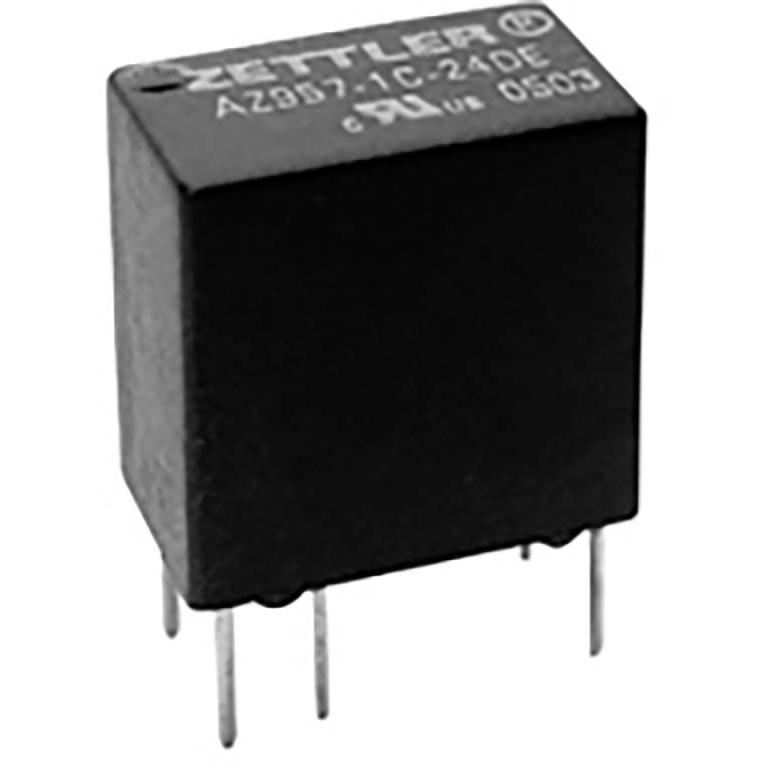

AZ957-1C-12DSE

Teknik Özellikler

Pin Sayısı

6

Release Time

1 ms

RoHS

Non-Compliant

Terminal Length

0.0035 inch

Coil Voltagedcmax

21.9 V

Maks. Çalışma Sıcaklığı

80 °C

Ürün Durumu

Active

Terminal Kaplaması

Tin

Contact Currentdcmax

1 A

Relay Type

POWER/SIGNAL RELAY

Resistance Coil

960Ω

Operating Temperaturemax

80 °C

Paket

Box

Reference Standard

UL

Relay Function

SPDT

Contact Resistance

100 mΩ

Input Switching Control Type

Random

Dielectric Strength Between Open Contacts

400 Vrms

Tip

AZ957-1C-12DSE

Sealing

EPOXY

Max Voltage Rating Dc

60 V

Coil Nominal Voltage

12V DC

Max Current Rating

1 A

Max Switching Capacity

30W

Response Time

5ms

Insulation Resistance

100000000 Ω

Coilinput Supply Type

DC

Durability

1 x 10E6

Dielectric Strength Between Coil And Contacts

1250 Vrms

Min Temperature

-40°C

Seri

*

Electricallife

100000 Cycle(s)

Physical Dimension

12.8mm x 7.8mm x 10.3mm

Montaj

Through Hole

Switching Current Max

1A

Max Voltage Rating Ac

125 V

Throw Configuration

SPDT

REACH Uyumluluk Kodu

compliant

Contact Voltagedcmax

60 V

Rohs Code

Yes
