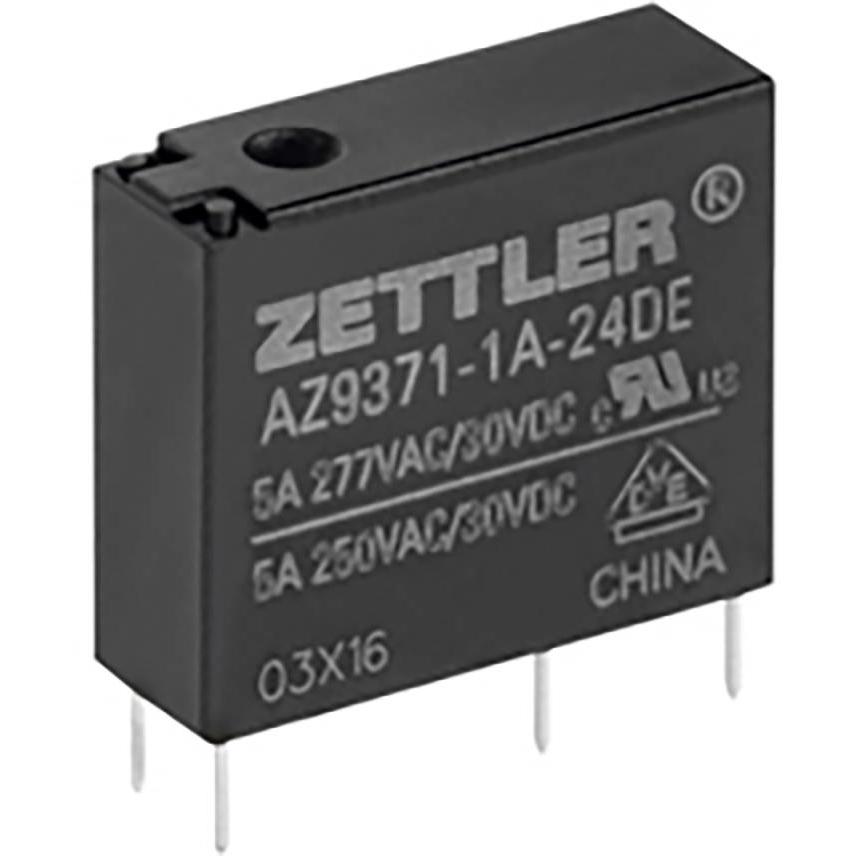

AZ9371-1A-24DE

Teknik Özellikler

Must Operate Voltage

18 VDC

Contact Type

1 maker

Fall Time

3ms

Max Switching Capacity

150W

Operate Time

6 ms

Tip

AZ9371-1A-24DE

Switching Current Max

5A

Durability

5 x 10E6

Seal Rating

Sealed - Fully

Min Temperature

-40°C

Switching Voltage Max

30V DC,277V AC

Relay Type

General Purpose

Coil Nominal Voltage

24V DC

Coil Voltage

24VDC

Dim

(L x W x H) 20.5 x 7.2 x 15.3 mm

Uzunluk

20.5mm

Must Release Voltage

1.2 VDC

Max Temperature

+105°C

Seri

*

Genişlik

7.2mm

Coilresistance

2.88 kOhms

Coil Current

8.3 mA

Coil Type

Non Latching

Control Mode

monostable, 1 coil

Çalışma Sıcaklığı

-40°C ~ 105°C

Kontak Formu

SPST-NO (1 Form A)

Contact Materials

AgNi

Resistance Coil

2880Ω

Content

1pc(s)

Release Time

3 ms

Response Time

6ms

Paket

Box

Terminal Stili

PC Pin

Montaj Tipi

Through Hole

Yükseklik

15.3mm

Ürün Durumu

Active

Contact Rating Current

5 A

Coil Insulation

Class F

Switching Voltage

277VAC, 30VDC - Max

Connections

Solder pins
