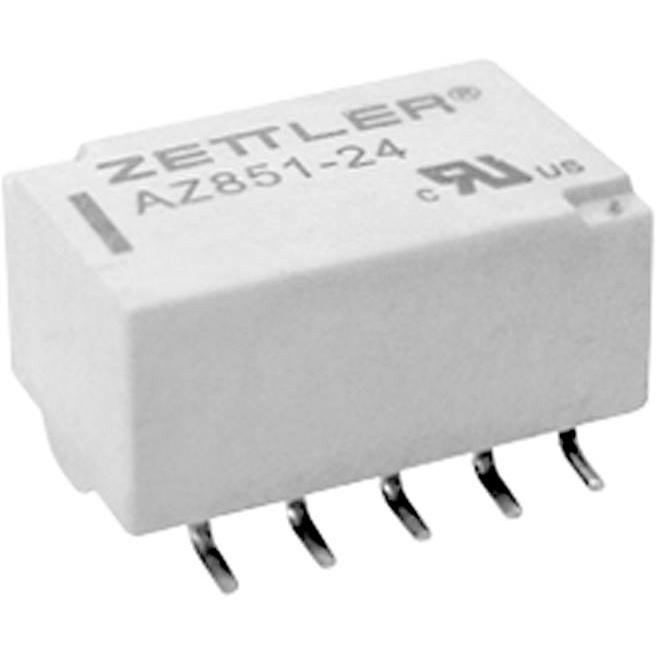

AZ851-12

Teknik Özellikler

Uzunluk

14.20mm

Insulation Resistance

1000000000 Ω

Contact Voltageacmax

250 V

Relay Form

2 FORM C

Coil Operate Voltagedc

9 V

End Contact Plating

GOLD

Switching Voltage Max

220V DC

Terminal

Gull Wing

RoHS

Compliant

Max Voltage Rating Ac

250 V

Body Breadth

9.3 mm

Coil Nominal Voltage

12V DC

Contact Currentacmax

1 A

Durability

1 x 10E8

Switching Current Max

1

Min Temperature

-40°C

ECCN Kodu

EAR99

Manufacturer Series

AZ851

Part Life Cycle Code

Active

Dielectric Strength Between Open Contacts

1000 Vrms

Contact Type

2 change-overs

Min Pickup Voltage

9V DC

Number Of Terminals

10

Rohs Code

Yes

Coil Voltagedcmax

30 V

Operate Time

2 ms

Paket

Box

Max Pickup Voltage

30V DC

Relay Function

DPDT

Ürün Durumu

Active

Ihs Manufacturer

AMERICAN ZETTLER INC

Contact Materials

AgPd + Au

Coilinput Supply Type

DC

Contactoutput Supply Type

AC/DC

Operating Temperaturemin

-40 °C

Max Temperature

+85°C

Body Length Or Diameter

14.2 mm

Coilresistance

1.028 kΩ

Coil Current

11.7 mA

Maks. Çalışma Sıcaklığı

85 °C
